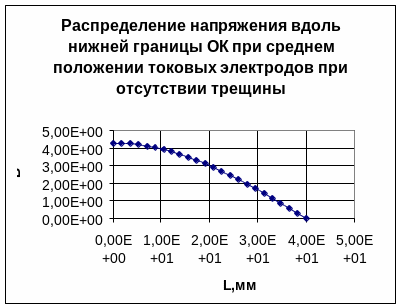

1.2.2 Построение зависимости напряжения вдоль верхней и нижней границ ОК.
| L,мм | U,В |
| 0,00E+00 | 4,29E+00 |
| 1,74E+00 | 4,27E+00 |
| 3,48E+00 | 4,24E+00 |
| 5,22E+00 | 4,19E+00 |
| 6,96E+00 | 4,12E+00 |
| 8,70E+00 | 4,03E+00 |
| 1,04E+01 | 3,92E+00 |
| 1,22E+01 | 3,79E+00 |
| 1,39E+01 | 3,64E+00 |
| 1,57E+01 | 3,48E+00 |
| 1,74E+01 | 3,30E+00 |
| 1,91E+01 | 3,11E+00 |
| 2,09E+01 | 2,90E+00 |
| 2,26E+01 | 2,68E+00 |
| 2,43E+01 | 2,45E+00 |
| 2,61E+01 | 2,20E+00 |
| 2,78E+01 | 1,95E+00 |
| 2,96E+01 | 1,69E+00 |
| 3,13E+01 | 1,42E+00 |
| 3,30E+01 | 1,14E+00 |
| 3,48E+01 | 8,64E-01 |
| 3,65E+01 | 5,79E-01 |
| 3,83E+01 | 2,90E-01 |
| 4,00E+01 | 1,79E-12 |
| L,мм | U,В |
| 0,00E+00 | 8,13E+00 |
| 1,74E+00 | 8,12E+00 |
| 3,48E+00 | 8,09E+00 |
| 5,22E+00 | 8,05E+00 |
| 6,96E+00 | 7,99E+00 |
| 8,70E+00 | 7,91E+00 |
| 1,04E+01 | 7,83E+00 |
| 1,22E+01 | 7,73E+00 |
| 1,39E+01 | 7,64E+00 |
| 1,57E+01 | 7,54E+00 |
| 1,74E+01 | 7,45E+00 |
| 1,91E+01 | 7,37E+00 |
| 2,09E+01 | 7,30E+00 |
| 2,26E+01 | 7,24E+00 |
| 2,43E+01 | 7,19E+00 |
| 2,61E+01 | 7,16E+00 |
| 2,78E+01 | 7,13E+00 |
| 3,00E+01 | 7,12E+00 |
| 3,13E+01 | 7,07E+00 |
| 3,30E+01 | 7,00E+00 |
| 3,48E+01 | 6,95E+00 |
| 3,65E+01 | 6,92E+00 |
| 3,83E+01 | 6,90E+00 |
| 4,00E+01 | 6,89E+00 |
1.3.1 Получение калибровочных характеристик при нижнем положении токовых электродов.
| Глубина,мм | (16;70) | (22;70) | (30;0) |
| 0 | 6,784698 | 6,607492 | 1,7796978 |
| 2 | 6,866411 | 6,693217 | 1,8050217 |
| 4 | 6,959595 | 6,793185 | 1,8382968 |
| 6 | 7,062037 | 6,902988 | 1,8797033 |
| 8 | 7,27823 | 7,144634 | 1,9878007 |
| 10 | 7,393243 | 7,277117 | 2,0602663 |
| 14 | 7,621832 | 7,511957 | 2,2381341 |
| 16 | 7,730891 | 7,608026 | 2,3473956 |
| 20 | 8,419125 | 8,279035 | 2,8685468 |
| 22 | 9,043979 | 8,757799 | 3,14955711 |
| 26 | 8,755909 | 8,463519 | 3,9233832 |
1.3.2 Построение зависимости напряжения вдоль верхней и нижней границ ОК.
| L,мм | U,В |
| 0,00E+00 | 5,73E+00 |
| 1,74E+00 | 5,71E+00 |
| 3,48E+00 | 5,66E+00 |
| 5,22E+00 | 5,58E+00 |
| 6,96E+00 | 5,47E+00 |
| 8,70E+00 | 5,32E+00 |
| 1,04E+01 | 5,15E+00 |
| 1,22E+01 | 4,96E+00 |
| 1,39E+01 | 4,75E+00 |
| 1,57E+01 | 4,51E+00 |
| 1,74E+01 | 4,26E+00 |
| 1,91E+01 | 3,99E+00 |
| 2,09E+01 | 3,71E+00 |
| 2,26E+01 | 3,41E+00 |
| 2,43E+01 | 3,10E+00 |
| 2,61E+01 | 2,79E+00 |
| 2,78E+01 | 2,46E+00 |
| 2,96E+01 | 2,12E+00 |
| 3,13E+01 | 1,78E+00 |
| 3,30E+01 | 1,43E+00 |
| 3,48E+01 | 1,08E+00 |
| 3,65E+01 | 7,21E-01 |
| 3,83E+01 | 3,61E-01 |
| 4,00E+01 | 2,23E-12 |
| L,мм | U,В |
| 0,00E+00 | 7,13E+00 |
| 1,74E+00 | 7,13E+00 |
| 3,48E+00 | 7,11E+00 |
| 5,22E+00 | 7,09E+00 |
| 6,96E+00 | 7,05E+00 |
| 8,70E+00 | 7,01E+00 |
| 1,04E+01 | 6,97E+00 |
| 1,22E+01 | 6,91E+00 |
| 1,39E+01 | 6,86E+00 |
| 1,57E+01 | 6,81E+00 |
| 1,74E+01 | 6,76E+00 |
| 1,91E+01 | 6,71E+00 |
| 2,09E+01 | 6,67E+00 |
| 2,26E+01 | 6,64E+00 |
| 2,43E+01 | 6,61E+00 |
| 2,61E+01 | 6,59E+00 |
| 2,78E+01 | 6,58E+00 |
| 3,00E+01 | 6,57E+00 |
| 3,13E+01 | 6,54E+00 |
| 3,30E+01 | 6,50E+00 |
| 3,48E+01 | 6,47E+00 |
| 3,65E+01 | 6,44E+00 |
| 3,83E+01 | 6,43E+00 |
| 4,00E+01 | 6,42E+00 |
2. Получение калибровочных характеристик при помощи векторного потенциала.

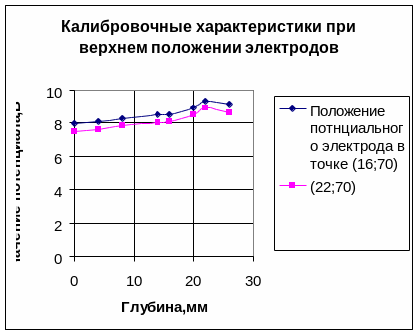

2.1 Токовые электроды в верхнем положении.
| Глубина,мм | (16;70) | (22;70) |
| 0 | 7,962482 | 7,493157 |
| 4 | 8,112655 | 7,601248 |
| 8 | 8,26422 | 7,824763 |
| 14 | 8,483128 | 8,012478 |
| 16 | 8,521459 | 8,098745 |
| 20 | 8,921125 | 8,520148 |
| 22 | 9,32125 | 8,900125 |
| 26 | 9,145987 | 8,602544 |

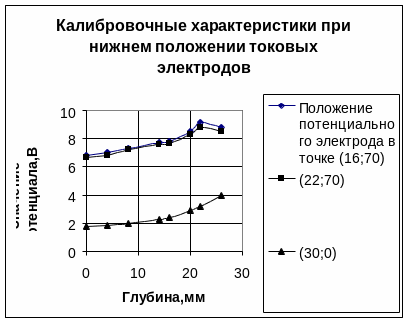

2.2.1 Токовые электроды в нижнем положении.
| Глубина,мм | (16;70) | (22;70) | (30;0) |
| 0 | 6,800255 | 6,662149 | 1,8002459 |
| 4 | 7,015898 | 6,80146 | 1,8723456 |
| 8 | 7,301158 | 7,201549 | 1,99254786 |
| 14 | 7,698672 | 7,578932 | 2,27865213 |
| 16 | 7,796521 | 7,672147 | 2,40012578 |
| 20 | 8,48357 | 8,309542 | 2,90245789 |
| 22 | 9,124894 | 8,812487 | 3,2214786 |
| 26 | 8,802548 | 8,503648 | 3,98412657 |
