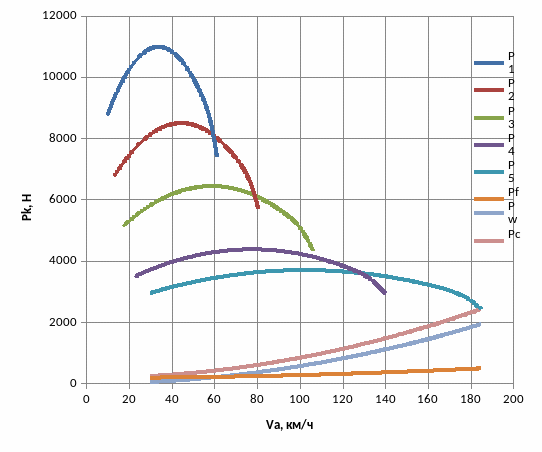

Силовой баланс автомобиля
Проводим расчёт по равенствам:
Эффективной мощности двигателя и мощности на колёсах:
N
=
, кВт; Ne1,1=
кВт;
N
=
, кВт; Nk1,1=
кВт;
Мощности внешних сопротивлений:
N
=
, кВт; Nf,1 =
= 0,501 кВт;
N
=
, кВт; Nw,1=
= 0,015 кВт;
N
= N + N , кВт; Nc,1= 0,501 + 0,015=0,516 кВт
Мощностной баланс, таблица 4.
| Первая передача | |||||
| Точки i | Nc,1 | Nw,1 | Nf,1 | Nk,1 | Ne,1 |
| 1 | 0,516 | 0,015 | 0,501 | 23,941 | 25,967 |
| 2 | 0,749 | 0,042 | 0,707 | 36,213 | 39,276 |
| 3 | 1,003 | 0,088 | 0,915 | 49,289 | 53,459 |
| 4 | 1,288 | 0,161 | 1,127 | 62,849 | 68,166 |
| 5 | 1,610 | 0,266 | 1,344 | 76,493 | 82,964 |
| 6 | 1,977 | 0,409 | 1,567 | 89,824 | 97,423 |
| 7 | 2,393 | 0,596 | 1,797 | 102,443 | 111,109 |
| 8 | 2,867 | 0,832 | 2,036 | 113,952 | 123,592 |
| 9 | 3,406 | 1,123 | 2,283 | 123,952 | 134,438 |
| 10 | 4,015 | 1,476 | 2,540 | 132,045 | 143,216 |
| 11 | 4,702 | 1,895 | 2,807 | 137,834 | 149,494 |
| 12 | 5,077 | 2,131 | 2,946 | 139,739 | 151,561 |
| 13 | 5,474 | 2,387 | 3,087 | 140,919 | 152,841 |
| 14 | 5,893 | 2,662 | 3,231 | 141,323 | 153,279 |
| 15 | 6,337 | 2,958 | 3,379 | 139,767 | 151,591 |
| 16 | 6,804 | 3,274 | 3,530 | 134,909 | 146,322 |
| 17 | 7,297 | 3,613 | 3,685 | 125,422 | 136,033 |
| Вторая передача | |||||
| Точки i | Nc,i | Nw,i | Nf,i | Nk,i | Ne,i |
| 1 | 0,698 | 0,034 | 0,664 | 24,435 | 26,502 |
| 2 | 1,031 | 0,095 | 0,937 | 36,842 | 39,958 |
| 3 | 1,418 | 0,201 | 1,217 | 50,145 | 54,387 |
| 4 | 1,874 | 0,367 | 1,507 | 63,940 | 69,350 |
| 5 | 2,415 | 0,606 | 1,809 | 77,822 | 84,405 |
| 6 | 3,056 | 0,931 | 2,125 | 91,384 | 99,115 |
| 7 | 3,812 | 1,356 | 2,456 | 104,222 | 113,039 |
| 8 | 4,698 | 1,892 | 2,806 | 115,931 | 125,738 |
| 9 | 5,731 | 2,555 | 3,176 | 126,105 | 136,773 |
| 10 | 6,925 | 3,357 | 3,568 | 134,339 | 145,704 |
| 11 | 8,296 | 4,311 | 3,985 | 140,228 | 152,091 |
| 12 | 9,053 | 4,849 | 4,204 | 142,166 | 154,193 |
| 13 | 9,860 | 5,431 | 4,429 | 143,366 | 155,495 |
| 14 | 10,718 | 6,057 | 4,661 | 143,778 | 155,941 |
| 15 | 11,630 | 6,729 | 4,901 | 142,194 | 154,224 |
| 16 | 12,598 | 7,450 | 5,149 | 137,252 | 148,863 |
| 17 | 13,624 | 8,220 | 5,404 | 127,601 | 138,395 |
| Третья передача | |||||
| Точки i | Nc,3 | Nw,3 | Nf,3 | Nk,3 | Ne,3 |
| 1 | 0,960 | 0,079 | 0,881 | 24,435 | 26,502 |
| 2 | 1,468 | 0,217 | 1,251 | 36,842 | 39,958 |
| 3 | 2,100 | 0,462 | 1,638 | 50,145 | 54,387 |
| 4 | 2,890 | 0,844 | 2,046 | 63,940 | 69,350 |
| 5 | 3,875 | 1,392 | 2,482 | 77,822 | 84,405 |
| 6 | 5,089 | 2,139 | 2,950 | 91,384 | 99,115 |
| 7 | 6,568 | 3,114 | 3,454 | 104,222 | 113,039 |
| 8 | 8,347 | 4,347 | 4,000 | 115,931 | 125,738 |
| 9 | 10,462 | 5,869 | 4,593 | 126,105 | 136,773 |
| 10 | 12,947 | 7,711 | 5,237 | 134,339 | 145,704 |
| 11 | 15,839 | 9,902 | 5,937 | 140,228 | 152,091 |
| 12 | 17,448 | 11,139 | 6,310 | 142,166 | 154,193 |
| 13 | 19,172 | 12,474 | 6,698 | 143,366 | 155,495 |
| 14 | 21,016 | 13,912 | 7,104 | 143,778 | 155,941 |
| 15 | 22,983 | 15,457 | 7,526 | 142,194 | 154,224 |
| 16 | 25,077 | 17,111 | 7,966 | 137,252 | 148,863 |
| 17 | 27,305 | 18,880 | 8,425 | 127,601 | 138,395 |
