Текст из файла (страница 11)

[2716] (char *title,

[2717] int col_rect,

[2718] int bk_txt,int col_txt,

[2719] int *lx,int *ly,int *rx,int *ry

[2720] /* Abs. co-ord. window for output */)

[2721] {

[2722] /*---- Variables */

[2723] int left_x,right_x;

[2724] int left_y,right_y;

[2725] int dx,dy;

[2726] int th;

[2727] int tw;

[2728] /*----*/

[2729] settextstyle(SMALL_FONT,HORIZ_DIR,FONT_DIM_WIND);

[2730] tw=(strlen(title)+1)*textwidth("W");

[2731] th=textheight("W");

[2732] /*----*/

[2733] left_x=Left_x_2;

[2734] right_x=Right_x_2;

[2735] left_y=Left_y_2;

[2736] right_y=left_y+WIND_HEIGHT*th;

[2737] dx=right_x-left_x;

[2738] dy=right_y-left_y;

[2739] /*---- Window total */

[2740] setviewport

[2741] (left_x,left_y,right_x,right_y,CLIP_ON);

[2742] setbkcolor(BLACK);

[2743] setcolor(col_rect);

[2744] setlinestyle(SOLID_LINE,0,NORM_WIDTH);

[2745] rectangle(0,0,dx,dy);

[2746] /*---- Text window */

[2747] setfillstyle(SOLID_FILL,bk_txt);

[2748] bar(1,1,tw,dy-1);

[2749] settextjustify(CENTER_TEXT,CENTER_TEXT);

[2750] setcolor(col_txt);

[2751] outtextxy(tw/2,dy/2,title);

[2752] /*---- Abs. co-ord. window for output */

[2753] *lx=left_x+(1+tw);

[2754] *ly=left_y+1;

[2755] *rx=right_x-1;

[2756] *ry=right_y-1;

[2757] /*----*/

[2758] return right_y+WIND_INTERVAL_Y;

[2759] }

[2760] /*IIIIIIIIIIIIIIIIIIIIIIIIIIIIII*/

[2761] int Wind_2

[2762] (char *title,

[2763] int col_rect,

[2764] int bk_txt,int col_txt,

[2765] int *lx,int *ly,int *rx,int *ry

[2766] /* Abs. co-ord. window for output */)

[2767] {

[2768] /*---- Variables */

[2769] int left_x,right_x;

[2770] int left_y,right_y;

[2771] int dx,dy;

[2772] int th;

[2773] /*----*/

[2774] settextstyle(SMALL_FONT,HORIZ_DIR,FONT_DIM_WIND);

[2775] th=textheight("W");

[2776] /*----*/

[2777] left_x=Left_x_2;

[2778] right_x=Right_x_2;

[2779] left_y=Left_y_2;

[2780] right_y=left_y+WIND_HEIGHT*th*2;

[2781] dx=right_x-left_x;

[2782] dy=right_y-left_y;

[2783] /*---- Window total */

[2784] setviewport

[2785] (left_x,left_y,right_x,right_y,CLIP_ON);

[2786] setbkcolor(BLACK);

[2787] setcolor(col_rect);

[2788] setlinestyle(SOLID_LINE,0,NORM_WIDTH);

[2789] rectangle(0,0,dx,dy);

[2790] /*---- Text window */

[2791] setfillstyle(SOLID_FILL,bk_txt);

[2792] bar(1,1,dx-1,dy/2-1);

[2793] settextjustify(CENTER_TEXT,CENTER_TEXT);

[2794] setcolor(col_txt);

[2795] outtextxy(dx/2,dy/4,title);

[2796] /*---- Abs. co-ord. window for output */

[2797] *lx=left_x+1;

[2798] *ly=left_y+(1+WIND_HEIGHT*th);

[2799] *rx=right_x-1;

[2800] *ry=right_y-1;

[2801] /*----*/

[2802] return right_y+WIND_INTERVAL_Y;

[2803] }

[2804] /*IIIIIIIIIIIIIIIIIIIIIIIIIIIIII*/

[2805] int Wind_D

[2806] (float compression_y,

[2807] int col, int row,

[2808] int col_rect,

[2809] int *kx,int *ky,

[2810] int *lx,int *ly,int *rx,int *ry

[2811] /* Abs. co-ord. window for output */)

[2812] {

[2813] /*---- Variables */

[2814] int left_x,right_x;

[2815] int left_y,right_y;

[2816] int dx,dy;

[2817] /*----*/

[2818] left_x=Left_x_1;

[2819] right_x=Right_x_1;

[2820] left_y=Left_y_1;

[2821] right_y=left_y+Maxy*compression_y;

[2822] dx=right_x-left_x;

[2823] dy=right_y-left_y;

[2824] /*---- Window total */

[2825] setviewport

[2826] (left_x,left_y,right_x,right_y,CLIP_ON);

[2827] setbkcolor(BLACK);

[2828] setcolor(col_rect);

[2829] setlinestyle(SOLID_LINE,0,NORM_WIDTH);

[2830] rectangle(0,0,dx,dy);

[2831] /*---- Abs. co-ord. window for output */

[2832] *lx=left_x+1;

[2833] *ly=left_y+1;

[2834] *rx=right_x-1;

[2835] *ry=right_y-1;

[2836] *kx=dx/col;

[2837] *ky=dy/row;

[2838] /*----*/

[2839] return right_y+WIND_INTERVAL_Y;

[2840] }

[2841] /*IIIIIIIIIIIIIIIIIIIIIIIIIIIIII*/

[2842] int Bit(int x,int y,unsigned char bit)

[2843] {

[2844] settextstyle(SMALL_FONT,HORIZ_DIR,FONT_DIM_DRAFT+2);

[2845] settextjustify(CENTER_TEXT,CENTER_TEXT);

[2846] setbkcolor(BLACK);

[2847] /*---- Delete bit */

[2848] setcolor(BLACK);

[2849] outtextxy(x,y,"0");

[2850] outtextxy(x,y,"1");

[2851] /*---- Print bit */

[2852] if(bit==0)

[2853] {

[2854] setcolor(LIGHTBLUE);

[2855] outtextxy(x,y,"0");

[2856] }

[2857] else

[2858] {

[2859] setcolor(LIGHTMAGENTA);

[2860] outtextxy(x,y,"1");

[2861] }

[2862] setlinestyle(SOLID_LINE,0,NORM_WIDTH);

[2863] setcolor(CYAN);

[2864] rectangle(

[2865] x-textwidth("0")/2-1,y-textheight("0")/2+2,

[2866] x+textwidth("0")/2-1,y+textheight("0")/2+2);

[2867] /*----*/

[2868] return 0;

[2869] }

[2870] /*IIIIIIIIIIIIIIIIIIIIIIIIIIIIII*/

[2871] int E

[2872] (char *t,int n,int lx,int ly,int dim_x,int dim_y,

[2873] int kx,int ky)

[2874] {

[2875] /*---- Variable */

[2876] char buf_str[80];

[2877] /*---- Device */

[2878] settextstyle(SMALL_FONT,HORIZ_DIR,FONT_DIM_DRAFT);

[2879] setlinestyle(SOLID_LINE,0,NORM_WIDTH);

[2880] setcolor(LIGHTGRAY);

[2881] if(dim_x<3) dim_x=3;

[2882] if(dim_y<3) dim_y=3;

[2883] RectangleN(lx*kx,ly*ky,(lx+dim_x)*kx,(ly+dim_y)*ky,2);

[2884] setcolor(YELLOW);

[2885] settextjustify(RIGHT_TEXT,CENTER_TEXT);

[2886] outtextxy((lx+dim_x-1)*kx,(ly+1)*ky,t);

[2887] setcolor(WHITE);

[2888] itoa(n,buf_str,10);

[2889] settextjustify(LEFT_TEXT,CENTER_TEXT);

[2890] outtextxy((lx+1)*kx,(ly+dim_y-1)*ky,buf_str);

[2891] /*----*/

[2892] return 0;

[2893] }

[2894] /*IIIIIIIIIIIIIIIIIIIIIIIIIIIIII*/

[2895] int B

[2896] (char *t,int n,int lx,int ly,int dim_x,int dim_y,

[2897] int kx,int ky)

[2898] {

[2899] /*---- Variable */

[2900] char buf_str[80];

[2901] /*---- Device */

[2902] settextstyle(SMALL_FONT,HORIZ_DIR,FONT_DIM_DRAFT);

[2903] setlinestyle(SOLID_LINE,0,NORM_WIDTH);

[2904] setfillstyle(SOLID_FILL,LIGHTGRAY);

[2905] if(dim_x<3) dim_x=3;

[2906] if(dim_y<3) dim_y=3;

[2907] bar(lx*kx,ly*ky,(lx+dim_x)*kx,(ly+dim_y)*ky);

[2908] setcolor(YELLOW);

[2909] rectangle(lx*kx,ly*ky,(lx+dim_x)*kx,(ly+dim_y)*ky);

[2910] settextjustify(RIGHT_TEXT,CENTER_TEXT);

[2911] outtextxy((lx+dim_x-1)*kx,(ly+1)*ky,t);

[2912] setcolor(WHITE);

[2913] itoa(n,buf_str,10);

[2914] settextjustify(LEFT_TEXT,CENTER_TEXT);

[2915] outtextxy((lx+1)*kx,(ly+dim_y-1)*ky,buf_str);

[2916] /*----*/

[2917] return 0;

[2918] }

[2919] /*IIIIIIIIIIIIIIIIIIIIIIIIIIIIII*/

[2920] int RectangleN

[2921] (int left_x,int left_y,int right_x,int right_y,int n)

[2922] {

[2923] int i;

[2924] for(i=0;i<n;i++)

[2925] {

[2926] rectangle

[2927] (left_x+i,left_y+i,right_x-i,right_y-i);

[2928] if((left_x+i)>=(right_x-i)) break;

[2929] if((left_y+i)>=(right_y-i)) break;

[2930] }

[2931] /*----*/

[2932] return 0;

[2933] }

[2934] /*IIIIIIIIIIIIIIIIIIIIIIIIIIIIII*/

[2935] int Rectangle2

[2936] (int left_x,int left_y,int right_x,int right_y)

[2937] {

[2938] rectangle

[2939] (left_x,left_y,right_x,right_y);

[2940] rectangle

[2941] (left_x+2,left_y+2,right_x-2,right_y-2);

[2942] /*----*/

[2943] return 0;

[2944] }

[2945] /*IIIIIIIIIIIIIIIIIIIIIIIIIIIIII*/

[2946] int EllipseN

[2947] (int x, int y,int stangle,int endangle,

[2948] int x_radius,int y_radius,int n)

[2949] {

[2950] int i;

[2951] for(i=0;i<n;i++)

[2952] {

[2953] ellipse(x,y,stangle,endangle,x_radius-i,y_radius-i);

[2954] if(x_radius<=0) break;

[2955] if(y_radius<=0) break;

[2956] }

[2957] /*----*/

[2958] return 0;

[2959] }

[2960] /*IIIIIIIIIIIIIIIIIIIIIIIIIIIIII*/

[2961] int Ellipse2

[2962] (int x, int y,int stangle,int endangle,

[2963] int x_radius,int y_radius)

[2964] {

[2965] ellipse(x,y,stangle,endangle,x_radius,y_radius);

[2966] ellipse(x,y,stangle,endangle,x_radius-2,y_radius-2);

[2967] /*----*/

[2968] return 0;

[2969] }

[2970] /*IIIIIIIIIIIIIIIIIIIIIIIIIIIIII*/

[2971] /*######################################################*/

Приложение 2.

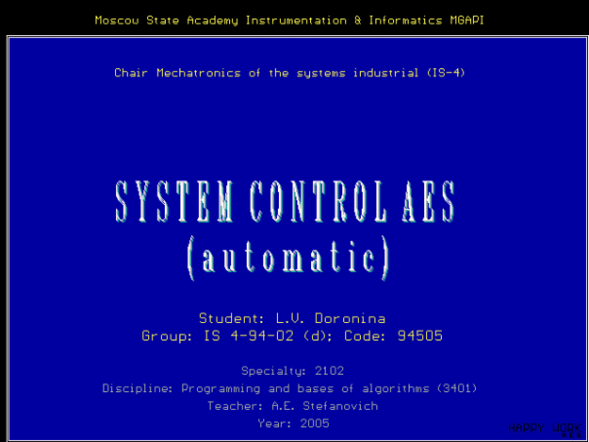

Титульный лист программы автоматического управления.

Приложение 3.
Индикация начала работы программы автоматического управления.

Приложение 4.

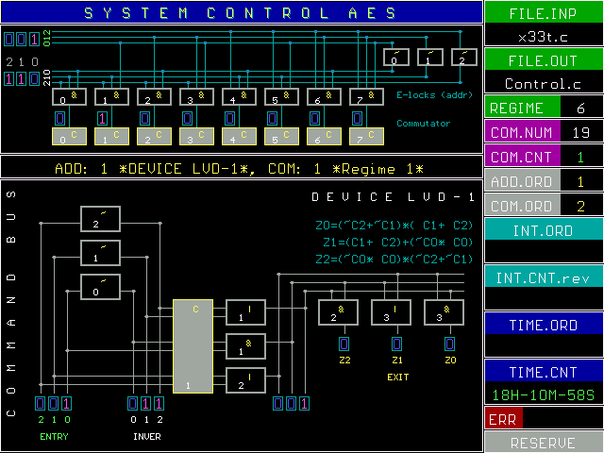

Индикация работы устройства
DEVICE LVD-1.

Приложение 5.
Индикация работы устройства
DEVICE LVD-2.

Приложение 6.

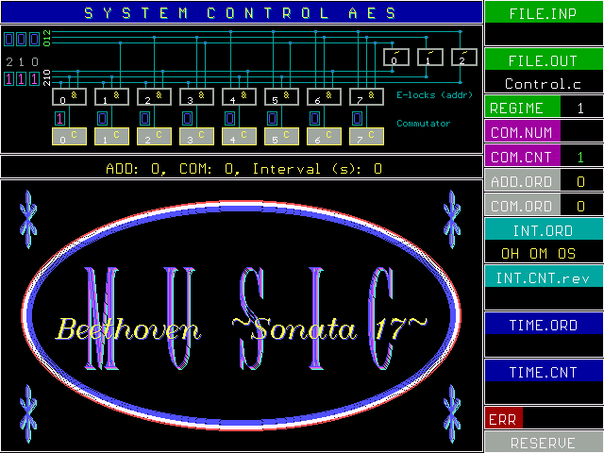

Индикация работы устройства
МУЗЫКАЛЬНЫЙ ЦЕНТР.

Приложение 7.

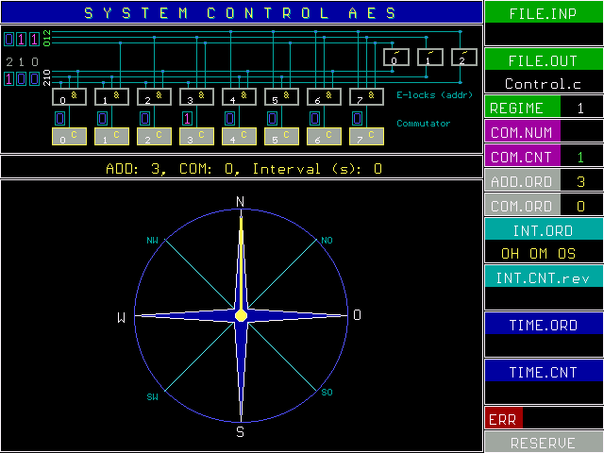

Индикация работы устройства
АВТОПИЛОТ.

Приложение 8.

Музыкальный файл (файл звуковой сигнализации).

/*################################################*/

[1] /* Music file: music_0.h - Sound */

[2] /*############################################*/

[3] /*================ DEFINE */

[4] /*------------- First octave frequency (Hz): */

[5] #define D_ 262

[6] #define DD_ 277

[7] #define RB_ 277

[8] #define R_ 294

[9] #define RD _ 311

[10] #define MB_ 311

[11] #define M_ 330

[12] #define F_ 349

[13] #define FD_ 370

[14] #define SB_ 370

[15] #define S_ 392

[16] #define SD_ 415

[17] #define LB_ 415

[18] #define L_ 440

[19] #define LD_ 466

[20] #define CB_ 466

[21] #define C_ 494

[22] /*------------- Coeficient frequency */

[23] #define OG 0.25 /* Great oct.*/

[24] #define OL 0.5 /* Little oct. */

[25] #define O2 2 /* Second oct. */

[26] #define O3 4 /* Third oct. */

[27] /*------------- */

[28] #define P_ 20000 /* Pause frequency (Hz) */

[29] /*================ Length of the whole note (ms):*/

[30] #define ANDANTE 3375

[31] #define MODERATO 2250

[32] #define ALLEGRO 1700

[33] /*================ DECLARATION */

[34] void n(float f,float l);

[35] void sonata17(float W);

[36] void sonata17r(float W);

[37] void elise(float W);

[38] /*================ SUBROUTINE */

[39] /*IIIIIIIIIIIIIIIIIIIIIIII*/

[40] void n(float f,float l)

[41] {

[42] sound(f);

[43] delay(l);

[44] nosound();

[45] }

[46] /*IIIIIIIIIIIIIIIIIIIIIIII*/

[47] void sonata17(float W)

[48] {

[49] n(L_,W/16); n(F_*O2,W/16); n(M_*O2,W/16);

[50] /*---------------- tact 1 */

[51] n(R_*O2,W/8); n(P_,W/16); n(L_*O2,W/16); n(F_*O2,W/16); n(M_*O2,W/16);

[52] n(R_*O2,W/8); n(P_,W/16); n(L_*O2,W/16); n(F_*O2,W/16); n(M_*O2,W/16);

[53] n(R_*O2,W/8); n(P_,W/16); n(L_, W/16); n(F_*O2,W/16); n(R_*O2,W/16);

[54] n(M_*O2,W/8); n(P_,W/16); n(L_, W/16); n(S_*O2,W/16); n(F_*O2,W/16);

[55] /*---------------- tact 2 */

[56] n(M_*O2,W/8); n(P_,W/16); n(L_,W/16); n(S_*O2,W/16); n(F_*O2,W/16);

[57] n(M_*O2,W/8); n(P_,W/16); n(L_ ,W/16); n(S_*O2,W/16); n(F_*O2,W/16);
