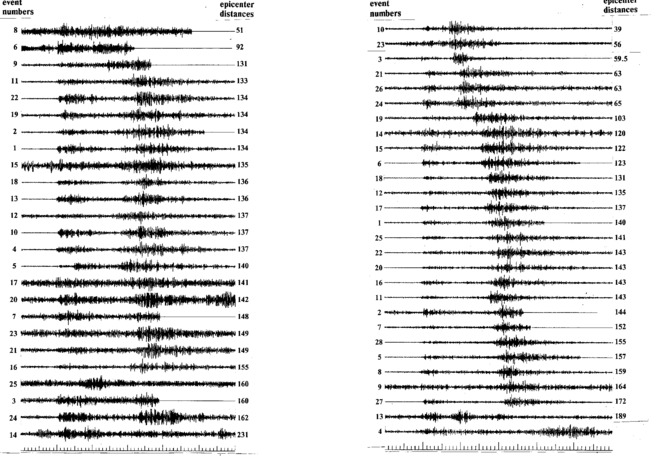

1. Пример выборки сейсмограмм.

В левом столбце представлены сейсмограммы, описывающие взрывы, а в правом – землетрясения.

1. Пример файла с векторами признаков.

Представлена выборка из файла 9_Norv.txt, содержащего 9 размерные вектора признаков.

NumOfPattern: 86

PatternDimens: 9

1 -14.3104 -13.2561 -13.4705 -13.4306 -14.1015 -13.3503 -13.3805 -13.7369 -0.3494 0

2 -14.6881 -13.6349 -12.9050 -13.4323 -14.2279 -13.4720 -13.2117 -13.5791 -1.2801 0

3 -14.4036 -14.1745 -13.8014 -12.7209 -14.6283 -13.9589 -13.4649 -12.9716 -0.8250 0

…

55 -14.3693 -13.4362 -11.4072 -12.3129 -14.8612 -13.3480 -12.8517 -13.4014 -0.7738 0

56 -14.2856 -12.6858 -13.8215 -13.4282 -14.0982 -13.1587 -13.2792 -13.7852 -1.3442 0

57 -14.4822 -13.1141 -13.7787 -13.4466 -13.6761 -13.2969 -13.6033 -13.9252 -0.6642 1

58 -13.5522 -13.1302 -13.5444 -14.1471 -13.2994 -13.2368 -13.9776 -14.4295 -0.9973 1

59 -14.8524 -11.9846 -13.7231 -14.2496 -13.4809 -13.0515 -13.8950 -14.3923 -1.8284 1

…

85 -14.5994 -13.6920 -12.8539 -13.7629 -14.1699 -13.2075 -13.3422 -13.6788 -11.9537 1

86 -14.3821 -13.6093 -12.8677 -13.7788 -14.1260 -13.3246 -13.2966 -13.6453 -11.4304 1

1. Файл с настройками программы

#

# Common parameters for programm "NVCLASS"

#

# # # # # # # # # # # # # # # # # # # #

# 1_1 - OnlyTest mode , 1_2 - TestAfterLearn mode,

# 2_1 - CheckOneVector , 2_2 - CrossValidation mode.

#

TYPE=2_2

NDATA=9

NPATTERN=86

PatternFile=9_Norv.txt

NTEST=10

TestVector=vector.tst

NetworkFile=9.net

ResNetFname=9.net

NumberVector=57

ReportFile=Report.txt

Debug=Yes

#

# Next parameters was define in result experiments and if you will

# change it, the any characteristics of Neural Net may be not optimal

# (since may be better then optimal).

#

# # # # # # # # # # #

# 'NetStructure' must be: [NDATA,NUNIT1,1] (NOUT=1 always)

# value 'AUTO'-'NetStructure' will be define the programm.(See help).

# example : [18,9,1], or [18,18,1], or [9,9,5,1]

NetStructure=[18,12,1]

# may be: [Gauss] or [Random]

InitWeigthFunc=Gauss

Constant=3

Alfa=0

Sigma=1.5

Widrow=No

Shuffle=Yes

Scaling=Yes

LearnTolerance=0.1

Eta=1

MaxLearnCycles=50

Loop=3

#end of list

1. Пример файла отчета.

NVCLASS report - Wed Jun 02 15:58:02 1999

Type = 1_2

Neural Net -

PatternFile - vect.txt

Test Vector(s) - vector.tst

ResNetFname - 12.net

LearnTolerance = 0.10

InitialWeigthFunc = Gauss[ 0.0, 1.5]

Learning cycle result:

NumIter = 5

NumLE = 3

Error vector(s): 58, 59, 63,

+-----+------+--------+------+

| N | ID | Result |Target|

+-----+------+--------+------+

| 1 | 24 | 0.1064 | 0 |

| 2 | 25 | 0.9158 | 1 |

| 3 | 26 | 0.0452 | 0 |

| 4 | 27 | 0.0602 | 0 |

| 5 | 28 | 0.0348 | 0 |

| 6 | 29 | 0.0844 | 0 |

| 7 | 30 | 0.1091 | 0 |

| 8 | 31 | 0.0821 | 0 |

| 9 | 32 | 0.0298 | 0 |

| 10 | 33 | 0.2210 | 0 |

+-----+------+--------+------+

Learning cycle result:

NumIter = 5

NumLE = 5

Error vector(s): 33, 34, 55, 58, 63,

+-----+------+--------+------+

| N | ID | Result |Target|

+-----+------+--------+------+

| 1 | 24 | 0.1279 | 0 |

| 2 | 25 | 0.9929 | 1 |

| 3 | 26 | 0.0960 | 0 |

| 4 | 27 | 0.1463 | 0 |

| 5 | 28 | 0.1238 | 0 |

| 6 | 29 | 0.1320 | 0 |

| 7 | 30 | 0.1478 | 0 |

| 8 | 31 | 0.1235 | 0 |

| 9 | 32 | 0.0740 | 0 |

| 10 | 33 | 0.5140 | 1 |

+-----+------+--------+------+

1. Файл описания функций, типов переменных и используемых библиотек “nvclass.h”.

/*

* --- Neuro classificator---

*

* Common defines

*/

#include

#include

#include

#include

#include

#include

#include

//#include

//#include

#include

#define DefName "nvclass.inp"

#define MAXDEF 100

#define MAXLINE 256

#define NMAXPAT 100

#define NMXINP 20

#define NMXUNIT 20

#define CONT 0

#define EXIT_OK 1

#define EXIT_CNT 2

#define RESTART 911

#define MAXEXP 700 /* Max arg exp(arg) without error 'OVERFLOW' */

#define Random 10

#define Gauss 20

#define OK 0

#define Error 1

#define Yes 77

#define No 78

#define Min 0 /* Find_MinMax(...) */

#define Max 1

#define TYPE_ONE 21

#define TYPE_TWO 22

#define TYPE_THREE 23

#define TYPE_FOUR 24

int NDATA = 0;

int NUNIT1 = 0;

int NUNIT2 = 0;

int NUNIT3 = 0;

int NOUT = 1;

int NPATTERN = 0; /* Number of input pattern*/

int NWORK = 0; /* Number of work pattern*/

int NTEST= 0; /* Number of test pattern*/

int result;

int STOP = 0;

int NumOut = 250; /* Number of itteration, after which show result in debugfile. */

int Num_Iter=10;/* The parameters requred in the procecc of */

float Percent=0.25; /* dinamic lerning with change 'eta' */

float LearnTolerance = 0.10;

float TestTolerance = 0.5;

float MAX_ERR=0.00001; /* min error */

float eta = 1.0; /* learning coefficient*/

float MIN_ETA=0.000001;

float **Array_MinMax;

int *Cur_Number;

float W1[NMXINP][NMXUNIT];

float W2[NMXUNIT];

float PromW1[NMXINP][NMXUNIT];

float PromW2[NMXUNIT];

float PromW1_OLD[NMXINP][NMXUNIT];

float PromW2_OLD[NMXUNIT];

float Err1[NMXUNIT];

float Err2;

float OLD_ERROR;

float GL_Error=0.0;

float Out1[NMXUNIT];

float Out2;

char NetStr[20]="Auto"; /* String with pattern of Net Structure*/

int Type = TYPE_THREE; /* Enter the mode of work of programm */

int InitFunc = Random; /* Random [=10] weigth will RandomDistribution Gauss [=20] - ... GaussianDistributon */

float Constant = 1; /* RandomDistribution [-Constant,Constant]*/

float Alfa = 0; /* GaussianDistribution [Alfa,Sigma]*/

float Sigma = 1; /* ... */

int Widrow = No; /* Nguyen-Widrow initialization start weigth*/

int Loop = 1; /* Number repeat of Learning cycle */

char *PatternFile; /* File with input patterns*/

char *TestVector;

char *ReportFile="report.txt"; /* name of report file */

char *NetworkFile; /* Name of input NetConfig file */

char *ResNetFname; /* Name of output NetConfig file */

int DEBUG = Yes; /* if 'Yes' then debug info in the DebugFile */

char *DebugFile="Logfile.log"; /* Name of the debug file*/

int NumberVector = 0; /* Number of TEST vector */

int Shuffle = Yes; /* Flag - shuffle the input vectors*/

int Scaling = Yes; /* Scaling input vector */

int MaxLearnCycles = 1999; /* Max number of learning iteration */

FILE *Dfp; /* Debug file pointer */

FILE *Rfp; /* Report file pointer*/

typedef struct Pattern {

int ID; /* ID number this vector in all set of pattern */

float *A; /* pattern (vector) A={a[0],a[1],...,a[NDATA]} */

float Target; /* class which this vector is present*/

} PAT;

PAT *Input;

PAT *Work;

PAT *Test;

/* lines in defaults file are in the form "NAME=value" */

typedef struct Default {

char *name; /* name of the default */

char *value; /* value of the default */

} DEF;

/* structure of statistics info about one test vector */

typedef struct Statistic {

int ID; /* Primery number from input file */

float Target;

float TotalRes; /* Total propability */

int Flag; /* Flag = 1, if vector was error and = 0

in over case */

float *result; /* Result of testing vector on current

iteration */

int *TmpFlag; /* analog 'Flag' on current itteration */

int *NumIter; /* Number iteration of learning on which

Learning cycle STOPED */

int **NumLE; /* Error vectors after cycle of learning

was test*/

} STAT;

/* structure of the some result of learning cycle */

typedef struct ResLearning {

int NumIter;

int LearnError[NMAXPAT+1]; /* A[0]-count of error,

A[1]-ID1,

A[2]-ID2,...

A[NMAXRL]-ID?.*/

} RL;

/* function prototypes */

void OnlyTestVector(void);

void TestAfterLearn (void);

void CheckOneVector ( void );

void CrossValidation ( void );

DEF **defbuild(char *filename);

DEF *defread(FILE *fp);

FILE *defopen (char *filename);

char *defvalue(DEF **deflist, const char *name);

int defclose(FILE *fp);

void defdestroy(DEF **, int);

void getvalues(void);

void Debug (char *fmt, ...);

void Report (char *fmt, ...);

void Widrow_Init(void);

int Init_W( void );

float RavnRaspr(float A, float B);

float NormRaspr(float B,float A);

void ShufflePat(int *INP,int Koll_El);

float F_Act(float x);

float Forward (PAT src);

int LearnFunc (void);

int Reset (float ResErr, int Cnt, int N_Err);

void Update_Last (int n, float Total_Out);

void Update_Prom1 (int n);

void Prom_to_W (void);

void Update_All_W (int num, float err_cur );

void Init_PromW(void);

void Prom_to_OLD(void);

int CheckVector(float Res, PAT src);

int *TestLearn(int *src);

RL FurtherLearning(int NumIteration,

float StartLearnTolerans,

float EndLearnTolerans,

RL src);

STAT *definestat (PAT src);

STAT **DefineAllStat (PAT *src,int Num);

void FillStatForm (STAT *st, int iteration, float res, RL lr);

void FillSimpleStatForm (STAT *st, float res);

void destroystat ( STAT *st, int param);

void DestroyAllStat (STAT **st, int Num);

void PrintStatHeader(void);

void printstat(STAT *st);

void PrintStatLearn(RL src);

void PrintTestStat(STAT **st, int len);

void PrintErrorStat (STAT **st,int Len);

int DefineNetStructure (char *ptr);

void getStructure(char buf[20]);

PAT patcpy (PAT dest, PAT src);

PAT* LocPatMemory(int num);

void ReadPattern (PAT *input, char *name,int Len);

void FreePatMemory(PAT* src, int num);

void ShowPattern (char *fname, PAT *src, int len);

void ShowVector(char *fname,PAT src);

float getPatTarget (float res);

PAT* DataOrder (PAT* src,int Len, int Ubit, PAT* dest, PAT* test);

void FindMinMax (PAT *src,int Dimens, int Num_elem, float **Out_Array);

void ConvX_AB_01(PAT src);

int *DefineCN (int len);

int getPosition (int Num, int *src, int Len);

void DestroyCN (int *src);

void ShowCurN (int LEN);

float **LocateMemAMM(void);

void FreeAMM (float **src);

void WriteHeaderNet(char *fname, float **src);

void WriteNet (char *fname,int It);

void ReadHeaderNet(char *fname, float **src);

int ReadNet (char *fname, int It);

FILE *OpenFile(char *name);

int CloseFile(FILE *fp);

/* End of common file */

1. Файл автоматической компиляции программы под Unix -“Makefile”.

CC= cc

LIBS= -lm

OBJ= nvclass.o

nvclass: $(OBJ)

$(CC) -o nvclass $(LIBS) $(OBJ)

nvclass.o: nvclass.c

1. Основной модуль - “nvclass.с”

/*

* Neuron Classificator ver 1.0

*/

#include "common.h"

/* =========================

* MAIN MODULE

* =========================

*/

void main (int argc, char *argv[])

{ int i;

char buf[MAXLINE], PrName[20], *ptr;

time_t tim;

time(&tim);

/* UNIX Module */

Dfp = OpenFile(DebugFile);

strcpy(buf,argv[0]);

ptr = strrchr(buf,'/');

ptr++;

strcpy(PrName,ptr);

Debug ("\n\n'%s' - Started %s",PrName,ctime(&tim));

getvalues();

Rfp = OpenFile(ReportFile);

DefineNetStructure(NetStr); /* NetStr string from input file */

getStructure(buf);

Debug ("\nNeyral net %s",buf);

Input = LocPatMemory(NPATTERN);

Work = LocPatMemory(NPATTERN);

Array_MinMax = LocateMemAMM();

Cur_Number = DefineCN (NPATTERN);

printf("\nMetka - 1");

if (Type == TYPE_ONE)

OnlyTestVector ();

if (Type == TYPE_TWO)

TestAfterLearn ();

if (Type == TYPE_THREE)

CheckOneVector ();

if (Type == TYPE_FOUR)

CrossValidation();

time(&tim);

Debug ("\n\n%s - Normal Stoped %s",PrName,ctime(&tim));

CloseFile(Dfp);

CloseFile(Rfp);

FreeAMM (Array_MinMax);

DestroyCN (Cur_Number);

FreePatMemory(Input,NPATTERN);

FreePatMemory(Work, NPATTERN);

}

/*

* ^OnlyTestVectors - read net from (NetworkFile) and test the TestVector(s)

*/

void OnlyTestVector(void)

{ char buf[MAXLINE+1];

STAT **st, *stat;

int i,j;

float Res;

Debug ("\nOnlyTestVector proc start");

Debug ("\n NPATTERN = %d",NPATTERN);

Debug ("\n NTEST = %d",NTEST);

Test = LocPatMemory(NTEST);

ReadPattern(Test,TestVector, NTEST);

/* ShowPattern ("1.tst",Test,NTEST);*/

PrintStatHeader();

st = DefineAllStat (Test,NTEST);

ReadHeaderNet(NetworkFile,Array_MinMax);

if (Scaling == Yes)

{ for (i=0;i

ConvX_AB_01(Test[i]);

}

for (i=0; i < Loop ; i++)

{ Debug("\n----/ STEP = %d /-----",i+1);

Report("\n ",i+1);

ReadNet(NetworkFile,i+1);

for (j=0;j

{ Res=Forward(Test[j]);

CheckVector(Res,Test[j]);

FillSimpleStatForm(st[j],Res);

}

PrintTestStat(st,NTEST);

}

DestroyAllStat (st,1);

FreePatMemory(Test,NTEST);

}

…

/* ---------------------------------

* Debug to LOG_FILE and to CONSOLE

*/

/* debug for UNIX */

void Debug (char *fmt, ...)

{ va_list argptr;

int cnt=0;

if ((Dfp != NULL) && (DEBUG == Yes))

{

va_start(argptr, fmt);

vfprintf(Dfp, fmt, argptr);

fflush (Dfp);

va_end(argptr);

}

}

void Report (char *fmt, ...)

{ va_list argptr;

int cnt=0;

if (Rfp != NULL)

{

va_start(argptr, fmt);

vprintf (fmt,argptr);

vfprintf(Rfp, fmt, argptr);

fflush (Rfp);

va_end(argptr);

}

}

/* debug for DOS */

/*

void Debug (char *fmt, ...)

{ FILE *file;

va_list argptr;

if (DEBUG == Yes)

{ if ((file = fopen(DebugFile,"a+"))==NULL)

{ fprintf(stderr, "\nCannot open DEBUG file.\n");

exit(1);

}

va_start(argptr, fmt);

vfprintf(file, fmt, argptr);

va_end(argptr);

fclose (file);

}

}

void Report (char *fmt, ...)

{ FILE *file;

va_list argptr;

if ((file = fopen(ReportFile,"a+"))==NULL)

{ fprintf(stderr, "Cannot open REPORT file.\n");

exit(1);

}

va_start(argptr, fmt);

vfprintf(file, fmt, argptr);

vprintf(fmt,argptr);

va_end(argptr);

fclose (file);

}

*/

/*

* ^ReadPattern

*/

void ReadPattern (PAT *input, char *name, int Len)

{ int i=0, j=0, id, TmpNp=0, TmpNd=0, Flag=0;

char *buf1="NumOfPattern:";

char *buf2="PatternDimens:";

char str[40],str1[10];

PAT Ptr;

FILE *DataFile;

float tmp;

Debug ("\nReadPattern(%s,%d) - started",name,Len);

Ptr.A =(float*) malloc (NDATA * sizeof(float));

if ((DataFile = fopen(name,"r")) == NULL )

{ Debug("\nCan't read the data file (%s)",name);

fclose(DataFile);

exit (1);

}

if ((strcmp(name,TestVector)) == 0) /* if read TestVector, then read */

Flag = 1; /* only ID and A[i]. (NO Target) */

fscanf(DataFile,"%s %s",str,str1);

if ((strcmp(str,buf1))==0)

TmpNp = atoi (str1);

Debug("\nNumOfPattern = %d",TmpNp);

fscanf(DataFile,"%s %s",str,str1);

if ((strcmp(str,buf2))==0)

TmpNd = atoi (str1);

Debug("\nPatternDimens = %d",TmpNd);

if (TmpNp != Len)

Debug ("\n\tWARNING! - NumOfPattern NOT EQUAL Param (%d != %d)",TmpNp,Len);

if (TmpNd != NDATA)

Debug ("\n\tWARNING! - PatternDimens NOT EQUAL NDATA (%d != %d)",TmpNd,NDATA);

for (i = 0; i < Len; i++)

{fscanf(DataFile,"%d",&id);

Ptr.ID = id;

for (j=0; j < NDATA; j++)

{ fscanf (DataFile,"%f",&tmp);

Ptr.A[j]=tmp;

}

if ( Flag )

tmp = -1;

else

fscanf(DataFile,"%f",&tmp);

Ptr.Target = tmp;

input[i]=patcpy(input[i],Ptr);

}

fclose(DataFile);

}

/*

* ^LocPatMemory - locate memory for (PAT *)

*/

PAT* LocPatMemory(int num)

{ int i;

PAT *src;

src = (PAT *) malloc (num * sizeof(PAT));

for (i=0; i< num; i++)

{src[i].ID = -1;

src[i].A = (float*) malloc (NDATA * sizeof(float));

src[i].Target = -1.0;

}

return (src);

}

void FreePatMemory( PAT* src, int num )

{ int i;

for (i=0;i

free (src[i].A);

free (src);

}

/*

* Copies pattern src to dest.

* Return dest.

*/

PAT patcpy (PAT dest, PAT src)

{ int i;

dest.ID = src.ID;

for (i=0;i

dest.A[i] = src.A[i];

dest.Target = src.Target;

return dest;

}

…..

/* Random distribution value

* rand() return x from [0,32767] -> x/32768

* -> x from [0,1]

*/

float RavnRaspr(float A, float B)

{float x;

x = (B-A)*rand()/(RAND_MAX+1.0) + A;

return x;

}

float NormRaspr(float A,float B)

{ float mat_ogidanie=A, Sigma=B;

float Sumx=0.0, x;

int i;

for (i=0;i<12;i++)

Sumx = Sumx + RavnRaspr(0,1); /* from R[0,1] -> N[a,sigma]*/

x = Sigma*(Sumx-6) + mat_ogidanie;

return x;

}

int Init_W ( void )

{ int i,j;

float A, B;

time_t t,t1;

t = time(NULL);

t1=t;

/* restart random generator*/

while (t==t1)

srand((unsigned) time(&t));

if (InitFunc == Random)

{ A = -Constant;

B = Constant;

Debug ("\nInit_W () --- Start (%ld))",t);

Debug ("\n InitFunc=Random[%4.2f,%4.2f]",A,B);

for(i=0; i<=NDATA; i++)

for(j=0; j

W1[i][j]=RavnRaspr(A,B);

for(j=0; j <= NUNIT1; j++)

W2[j]=RavnRaspr(A,B);

}

if (InitFunc == Gauss)

{ A = Alfa;

B = Sigma;

Debug ("\nInit_W () --- Start (%ld))",t);

Debug ("\n InitFunc=Gauss[%4.2f,%4.2f]",A,B);

for(i=0; i<=NDATA; i++)

for(j=0; j

W1[i][j] = NormRaspr(A,B);

for(j=0; j <= NUNIT1; j++)

W2[j] = NormRaspr(A,B);

}

if ( Widrow == Yes )

Widrow_Init();

Debug ("\nInit_W - sucsefull ");

return OK;

}

/* LearnFunc */

int LearnFunc (void)

{ int i, j, n, K, NumErr=0;

int num=0;

float err_cur=0.0, Res=0;

time_t tim;

float ep[NMAXPAT];

GL_Error=1.0;

time(&tim);

Debug ("\nLearnFunc () --- Started");

Debug ("\n eta = %4.2f",eta);

Debug ("\n LearnTolerance = %4.2f",LearnTolerance);

Init_PromW();

do

{ num++;

err_cur = 0.0;

NumErr = 0;

for (n = 0; n < NWORK; n++)

{ K = Cur_Number[n];

Res=Forward(Work[K]);

ep[n]=fabs(Res-Work[K].Target);

if (ep[n] > LearnTolerance)

{ NumErr++;

Init_PromW();

Update_Last(K, Res);

Update_Prom1(K);

Prom_to_W();

}

err_cur = err_cur + (ep[n]*ep[n]);

}

err_cur=0.5*(err_cur/NWORK);

result = Reset(err_cur, num, NumErr);

if ((num % NumOut)==0)

Debug("\nStep :%d NumErr :%d Error:%6.4f",num,NumErr,err_cur);

} while (result == CONT || result == RESTART);

Debug("\nStep :%d NumErr :%d Error:%6.4f",num,NumErr,err_cur);

return num;

}

80

Характеристики

Список файлов реферата
