Лабораторная работа №3
по дисциплине «Экспертные системы»
тема: «Разработка экспертной системы с использованием программной среды CLIPS»
Выполнил:
Машеров Д.Е.
.
Москва
2012 г.
Постановка задачи
Разработать экспертную систему с использованием программы CLIPS.
Описание предметной области
Разрабатывается ЭС «Категоризация бриллиантов», которая позволяет выполнить категоризацию бриллиантов. Предметная обасть формализуется с помощью дерева целей, изображенном на Рис.1, дужкой помечена вершина «И», а отсутвием дужки – вершина «ИЛИ».
Описание работы ЭС
По дереву целей описаны переменные и правила, представленные в листинге.
Кэоффициенты уверенности объединяются по вероятностной схеме:
-
Объединение факторов уверенности для левой и правой частей правила
(a * b) / 100
-
Объединение факторов уверенности, полученных по нескольким правилам для одной переменной
a + b – (a * b) / 100

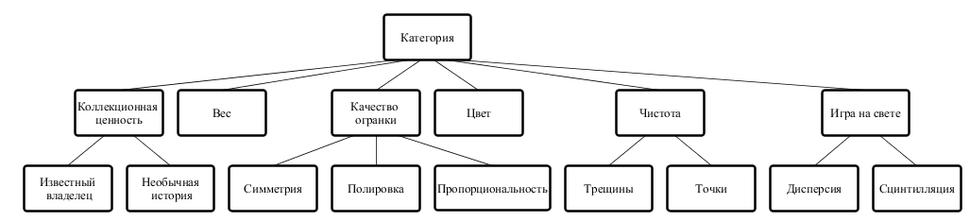

Рис.1. Дерево целей
Листинг
Ввод параметров
(defrule FAMOUS-input
(declare (salience 1000))
(initial-fact) =>
(printout t "Byl li u kamnja izvestnyj vladelec?(1 - da, 2 - net)? ")
(bind ?string (read))
(if (= ?string 1) then (assert(FAMOUS TRUE))
else (assert(FAMOUS FALSE))))
(defrule UNUSUAL-input
(declare (salience 900))
(initial-fact)=>
(printout t "Est' li neobychnaja istorija u kamnja?(1 - da, 2 - net)")
(bind ?string (read))
(if (= ?string 1) then (assert(UNUSUAL TRUE))
else (assert(UNUSUAL FALSE))))
(defrule WEIGHT-input
(initial-fact) =>
(printout t "Vvedite ves v karatah ")
(assert(WEIGHT (read))))
(defrule SYMMETRY-input
(initial-fact) =>
(printout t "Brilliant simmetrichen?(1 - da, 2 - net)")
(bind ?string (read))
(if (= ?string 1) then (assert(SYMMETRY TRUE))
else (assert(SYMMETRY FALSE))))
(defrule POLISH-input
(initial-fact) =>
(printout t "Est' li u brillianta negladkie storony?(1 - da, 2 - net)")
(bind ?string (read))
(if (= ?string 1) then (assert(POLISH FALSE))
else (assert(POLISH TRUE))))
(defrule PROPORT-input
(initial-fact) =>
(printout t "Vvedite otnoshenie rundisty(pojasa) k vysote kamnja v procentah ")
(assert(PROPORT (read))))
(defrule CRACKS-input
(initial-fact) =>
(printout t "Imejutsja li treshhiny? (1 - da, 2 - net)")
(bind ?string (read))
(if (= ?string 1) then (assert(CRACKS TRUE))
else (assert(CRACKS FALSE))))
(defrule DOTS-input
(initial-fact) =>
(printout t "Imejutsja li temnye tochki na poverhnosti? (1 - da, 2 - net)")
(bind ?string (read))
(if (= ?string 1) then (assert(DOTS TRUE))
else (assert(DOTS FALSE))))
(defrule COLOUR-input
(initial-fact) =>
(printout t "Ukazhite cvet (1 - bescvetnyj, 2 - zheltyj, 3 - cvetnoj)")
(assert(COLOUR (read))))
(defrule SCIN-input
(initial-fact) =>
(printout t "Imeejutsja li vspyshki sveta pri vrashhenii kamnja?(1 - da, 2 - net)")
(bind ?string (read))
(if (= ?string 1) then (assert(SCIN TRUE))
else (assert(SCIN FALSE))))
(defrule DISP-input
(initial-fact) =>
(printout t "Imeejutsja li cvetovye bliki?(1 - da, 2 - net)")
(bind ?string (read))
(if (= ?string 1) then (assert(DISP TRUE))
else (assert(DISP FALSE))))
Функция объединения правил
(deffunction combinef (?cf)
(if (not ?*firstf*) then (bind ?*firstf* TRUE) (bind ?*catf* ?cf)
else
(bind ?*catf* (- (+ ?*catf* ?cf) (/ (* ?*catf* ?cf) 100)))))
(deffunction combine (?cf)
(if (not ?*first*) then (bind ?*first* TRUE) (bind ?*cat* ?cf)
else
(if (< ?cf 0)
then (combinef (- 0 ?cf))
else (bind ?*cat* (- (+ ?*cat* ?cf) (/ (* ?*cat* ?cf) 100))))))
(defglobal ?*cat* = 100)
(defglobal ?*catf* = 100)
Правила для вычисления коэффициента уверенности целевой переменной
(defrule R1
(PROPORT ?val)
(and (SYMMETRY TRUE) (POLISH TRUE) (test (< ?val 50)))
=>
(printout t "--Esli brilliant simmetrichen, imeet gladkie storony i pravil'nye proporcii rundisty, to kachestvo ogranki horoshee" crlf)
(assert (CUTQUAL TRUE)))
(defrule R2
(or (SYMMETRY FALSE))
=>
(printout t "--Esli brilliant nesimmetrichen, to kachestvo ogranki neudovletvoritel'noe" crlf)
(assert (CUTQUAL FALSE)))
(defrule R3
(or (POLISH FALSE))
=>
(printout t "--Esli brilliant nesimmetrichen, to kachestvo ogranki neudovletvoritel'noe" crlf)
(assert (CUTQUAL FALSE)))
(defrule R4
(PROPORT ?val)
(test (>= ?val 50))
=>
(printout t "--Esli u brillianta nepravil'nye proporcii rundisty, to kachestvo ogranki neudovletvoritel'noe" crlf)
(assert (CUTQUAL FALSE)))
(defrule R5
(and (SCIN FALSE) (DISP FALSE))
=>
(printout t "--Esli scinciljacija i dispersija ne projavljajutsja, to igra brillianta neudovletvoritel'na" crlf)
(assert (PLAY FALSE)))
(defrule R6
(SCIN TRUE)
=>
(printout t "--Esli projavljaetsja scinciljacija, to igra brillianta schitaetsja horoshej" crlf)
(assert (PLAY TRUE)))
(defrule R7
(DISP TRUE)
=>
(printout t "--Esli projavljaetsja dispersija, to igra brillianta schitaetsja horoshej" crlf)
(assert (PLAY TRUE)))
(defrule R8
(FAMOUS TRUE)
=>
(printout t "--Esli u brillianta imetsja neobychnaja istorija, to brilliant imeet kollekcionnuju cennost'" crlf)
(assert (COLLECT TRUE)))
(defrule R9
(UNUSUAL TRUE)
=>
(printout t "--Esli u brillianta byl izvestnyj vladelec, to brilliant imeet kollekcionnuju cennost' " crlf)
(assert (COLLECT TRUE)))
(defrule R10
(and (FAMOUS FALSE) (UNUSUAL FALSE))
=>
(printout t "--Esli u brillianta ne bylo ni izvestnogo vladelec, ni neobychnoj istorii, to u brillianta net kollekcionnoj cennosti" crlf)
(assert (COLLECT FALSE)))
(defrule R11
(CUTQUAL TRUE)
=>
(printout t "--Esli kachestvo ogranki horoshee, to brilliant otnositsja k vysokoj kategorii" crlf)
(combine 70))
(defrule R12
(CUTQUAL FALSE)
=>
(printout t "--Esli kachestvo ogranki plohoe, to brilliant otnositsja k nizkoj kategorii" crlf)
(combine -70))
(defrule R13
(COLOUR ?val)
(test (= ?val 1))
=>
(printout t "--Esli brilliant bescvetnyj, to brilliant otnositsja k vysokoj kategorii" crlf)
(combine 40))
(defrule R14
(COLOUR ?val)
(test (= ?val 2))
=>
(printout t "--Esli brilliant imeet zheltovatyj cvet, to brilliant otnositsja k nizkoj kategori" crlf)
(combine -40))
(defrule R15
(COLOUR ?val)
(test (= ?val 3))
=>
(printout t "--Esli brilliant imeet otlichnyj ot zheltogo cvet, to brilliant otnositsja k vysokoj kategorii" crlf)
(combine 40))
(defrule R16
(and (CRACKS FALSE) (DOTS FALSE))
=>
(printout t "--Esli otsutstvujut treshhiny i temnye tochki, to chistota brillanta horoshaja" crlf)
(assert (PURITY TRUE)))
(defrule R17
(CRACKS TRUE)
=>
(printout t "--Esli imeejutsja treshhiny, to chistota brillanta neudovletvoritel'naja" crlf)
(assert (PURITY FALSE)))
(defrule R18
(DOTS TRUE)
=>
(printout t "--Esli imeejutsja temnye tochki, to chistota brillanta neudovletvoritel'naja" crlf)
(assert (PURITY FALSE)))
(defrule R19
(PURITY TRUE)
=>
(printout t "--Esli chistota brillanta horoshaja, to brilliant otnositsja k vysokoj kategorii" crlf)
(combine 50))
(defrule R20
(PURITY FALSE)
=>
(printout t "--Esli chistota brillanta neudovletvoritel'naja, to brilliant otnositsja k nizkoj kategorii" crlf)
(combine -50))
(defrule R21
(PLAY TRUE)
=>
(printout t "--Esli igra brillianta horoshaja, to brilliant otnositsja k vysokoj kategorii" crlf)
(assert (end TRUE))
(combine 30))
(defrule R22
(PLAY FALSE)
=>
(printout t "--Esli igra brillianta plohaya, to brilliant otnositsja k nizkoj kategorii" crlf)
(assert (end TRUE))
(combine -30))
(defrule R23
(COLLECT TRUE)
=>
(printout t "--Esli brilliant imeet kollekcionnuju cennost', to brilliant otnositsja k vysokoj kategorii" crlf)
(assert (end TRUE))
(assert (CATEG cf 100)))
(defrule R24
(WEIGHT ?val)
(test (<= ?val 1))
=>
(printout t "--Esli brilliant imeet nebol'shoj ves, to brilliant otnositsja k nizkoj kategorii" crlf)
(combine -70))
(defrule R25
(WEIGHT ?val)
(and (test (> ?val 1)) (test (<= ?val 3)))
=>
(printout t "--Esli brilliant imeet nebol'shoj ves, to brilliant otnositsja k nizkoj kategorii" crlf)
(combine 70))
(defrule R26
(WEIGHT ?val)
(test (> ?val 3))
=>
(printout t "--Esli brilliant imeet nebol'shoj ves, to brilliant otnositsja k nizkoj kategorii" crlf)
(combine 75))
Примеры работы
-

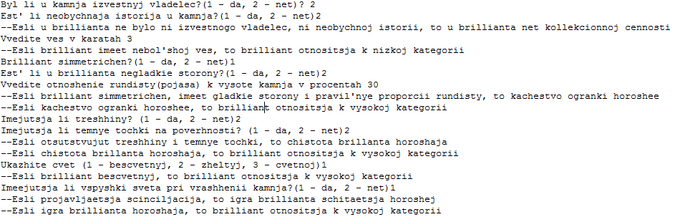

Хороший случай
Результат:
Использованные правила для вычисления целевой переменной:
R25 cf 70
R11 cf 70
R19 cf 50
R13 cf 40
R21 cf 30
Расчет коэффицентов:
cftrue = (70*100) / 100 + (70*100) / 100 – (70*70)/100 +
50 – (91 * 50) /100 +
40 - (95.5 * 40) +
30 – (97.3*30) /100 = 98.11
-

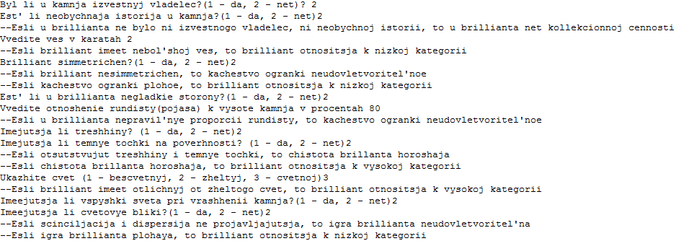

Плохой случай
Результат:
Использованные правила для вычисления целевой переменной:
R25 cf70
R12 cf70
R20 cf -50
R14 cf- 40
R22 cf -30
Расчет коэффицентов:
cftrue (-)= (70*100) / 100 + (50*100) / 100 – (70*50)/100 +
40 – (85 * 40)/100 +
30 – (30 * 91)/100 = 93.7
cftrue (+)= (70*100/100)
cftrue = cftrue (+) * (100 - cftrue (-)) / 100 =70 * 6.3 /100 = 4.41
1 – cftrue ≈ 95.59
-

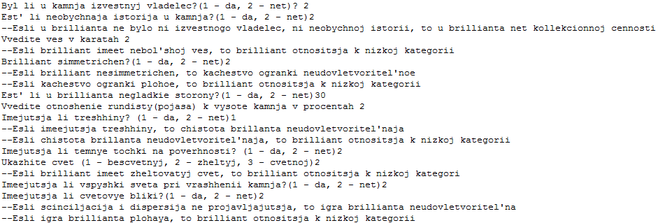

Средний случай
Результат:
Использованные правила для вычисления целевой переменной:
R25 cf 70
R19 cf 70
R15 cf 50
R12 cf -70
R22 cf -30
Расчет коэффицентов:
cftrue (-)= (70*100) / 100 + (30*100) / 100 – (70*50)/100 = 65
cftrue (+)= (70*100)/100 + (50*100)/100 – (70*50)/100 +
40 – (85*40)/100 = 91
cftrue = cftrue (+) * (100 - cftrue (-)) / 100 =85* 35 /100 = 29.75
1 – cftrue ≈81
Заключение
Была спроектирована экспертная система «Категоризация бриллиантов» при помощи инструментального средства CLIPS.
