20 SEIZE PC1
30 ADVANCE 6,1
40 RELEASE PC1
50 BB SEIZE K1
60 ADVANCE 3,1
70 RELEASE K1
80 SEIZE SW
81 ADVANCE 3,1
90 RELEASE SW
91 TEST NE P2,1,A1
92 TEST NE P2,2,A2
93 TEST NE P2,3,A3
94 TERMINATE
96 A3 SEIZE K3
97 ADVANCE 2,1
98 RELEASE K3
99 SEIZE FS
100 ADVANCE 5,1
101 RELEASE FS
102 ASSIGN 2,P1
103 ASSIGN 1,3
103.1 SEIZE K3
103.2 ADVANCE 2,1
103.3 RELEASE K3
104 SEIZE SW
105 ADVANCE 2,1
106 RELEASE SW
107 TEST NE P2,1,A1
108 TEST NE P2,2,A2
109 TERMINATE
111 A2 SEIZE K2
112 ADVANCE 5,1
113 RELEASE K2
114 SEIZE PC2
115 ADVANCE 5,1
116 RELEASE PC2
116.1 TEST NE P3,0,D1
117 TERMINATE
117.1 D1 ASSIGN 2,P1
117.2 ASSIGN 3,1
117.3 TRANSFER ,AA
118 A1 SEIZE K1
119 ADVANCE 5,1
120 RELEASE K1
121 SEIZE PC1
122 ADVANCE 6,1
123 RELEASE PC1
123.1 TEST NE P3,0,D2
124 TERMINATE
124.1 D2 ASSIGN 2,P1
124.2 ASSIGN 3,1
124.3 TRANSFER ,BB
125 GENERATE 18,3
126 ASSIGN 1,2
127 ASSIGN 2,FN$ADR2
127.1 ASSIGN 3,0
128 SEIZE PC2
130 ADVANCE 6,1
140 RELEASE PC2
150 AA SEIZE K2
160 ADVANCE 5,1
170 RELEASE K2
180 SEIZE SW
181 ADVANCE 3,1
182 RELEASE SW
183 TEST NE P2,1,A1
184 TEST NE P2,2,A2
184 TEST NE P2,3,A3
185 TERMINATE
1010 GENERATE 18,3
1011 ASSIGN 1,4
1012 ASSIGN 2,FN$ADR3
1013 ASSIGN 3,0
1020 SEIZE PC3
1030 ADVANCE 8,1
1040 RELEASE PC3
1050 ZZ SEIZE K4
1060 ADVANCE 5,1
1070 RELEASE K4
1080 SEIZE SW2
1081 ADVANCE 3,1
1090 RELEASE SW2
1091 TEST NE P2,4,B1
1092 TEST NE P2,5,B2
1093 TEST NE P2,6,B3
1094 TEST NE P2,7,B4
1095 TERMINATE
1096 B4 SEIZE K7
1097 ADVANCE 3,1
1098 RELEASE K7
1099 SEIZE FS2
10100 ADVANCE 6,1
10101 RELEASE FS2
10102 ASSIGN 2,P1
10103 ASSIGN 1,7
10103.1 SEIZE K7
10103.2 ADVANCE 3,1
10103.3 RELEASE K7
10104 SEIZE SW2
10105 ADVANCE 3,1
10106 RELEASE SW2
10107 TEST NE P2,4,B1
10108 TEST NE P2,5,B2
10109 TEST NE P2,6,B3
10110 TERMINATE
10111 B1 SEIZE K4
10112 ADVANCE 5,1
10113 RELEASE K4
10114 SEIZE PC3
10115 ADVANCE 8,1
10116 RELEASE PC3
10116.1 TEST NE P3,0,D3
10117 TERMINATE
10117.1 D3 ASSIGN 2,P1
10117.2 ASSIGN 3,1
10117.3 TRANSFER ,ZZ
10118 B2 SEIZE K5
10119 ADVANCE 5,1
10120 RELEASE K5
10121 SEIZE PC4
10122 ADVANCE 8,1
10123 RELEASE PC4
10123.1 TEST NE P3,0,D4
10124 TERMINATE
10125 D4 ASSIGN 2,P1
10126 ASSIGN 3,1
10127 TRANSFER ,XX
10140 B3 SEIZE K6
10141 ADVANCE 5,1
10142 RELEASE K6
10143 SEIZE PC5
10144 ADVANCE 8,1
10145 RELEASE PC5
10146 TEST NE P3,0,D5
10147 TERMINATE
10148 D5 ASSIGN 2,P1
10149 ASSIGN 3,1
10150 TRANSFER ,VV
10161 GENERATE 18,3
10162 ASSIGN 1,5
10163 ASSIGN 2,FN$ADR4
10164 ASSIGN 3,0
10165 SEIZE PC4
10166 ADVANCE 10,1
10167 RELEASE PC4
10168 XX SEIZE K5
10169 ADVANCE 10,1
10170 RELEASE K5
10180 SEIZE SW2
10181 ADVANCE 3,1
10182 RELEASE SW2
10183 TEST NE P2,4,B1
10184 TEST NE P2,5,B2
10184 TEST NE P2,6,B3
10185 TEST NE P2,7,B4
10186 TERMINATE
10261 GENERATE 18,3
10262 ASSIGN 1,6
10263 ASSIGN 2,FN$ADR5
10264 ASSIGN 3,0
10265 SEIZE PC5
10266 ADVANCE 8,1
10267 RELEASE PC5
10268 VV SEIZE K6
10269 ADVANCE 5,1
10270 RELEASE K6
10280 SEIZE SW2
10281 ADVANCE 3,1
10282 RELEASE SW2
10283 TEST NE P2,4,B1
10284 TEST NE P2,5,B2
10284 TEST NE P2,6,B3
10285 TEST NE P2,7,B4
10286 TERMINATE
102000 GENERATE 1000
102010 TERMINATE 1
102020 START
Отчет GPSSREPT:
GPSS/PC Report file REPORT.GPS. (V 2, # 37349) 12-16-2009 09:55:00 page 1
START_TIME END_TIME BLOCKS FACILITIES STORAGES FREE_MEMORY
0 1000 176 16 0 323120
NAME VALUE TYPE
COLUMN 10001 2
POSITION 10002 2
SHAPE 10003 2
ROW 10004 2
TO_COLUMN 10005 2
TO_ROW 10006 2
COLOR 10007 2
ADR1 10008 2
ADR2 10009 2
ADR3 10010 2
ADR4 10011 2
ADR5 10012 2
PC1 10013 2
K1 10014 2
BB 8 3
SW 10016 2
A1 46 3
A2 35 3
A3 18 3
K3 10020 2
FS 10021 2
K2 10022 2
PC2 10023 2
D1 43 3
AA 64 3
D2 54 3
PC3 10027 2
K4 10028 2
ZZ 80 3
SW2 10030 2
B1 109 3
B2 120 3
B3 131 3
B4 91 3
K7 10035 2
FS2 10036 2
D3 117 3
K5 10038 2
PC4 10039 2
D4 128 3
XX 149 3
K6 10042 2
PC5 10043 2
D5 139 3
VV 166 3
GPSS/PC Report file REPORT.GPS. (V 2, # 37349) 12-16-2009 09:55:00 page 2
LINE LOC BLOCK_TYPE ENTRY_COUNT CURRENT_COUNT RETRY
10 1 GENERATE 54 0 0
11 2 ASSIGN 54 0 0
12 3 ASSIGN 54 0 0
13 4 ASSIGN 54 0 0
20 5 SEIZE 54 0 0
30 6 ADVANCE 54 0 0
40 7 RELEASE 54 1 0
50 BB SEIZE 100 0 0
60 9 ADVANCE 100 0 0
70 10 RELEASE 100 1 0
80 11 SEIZE 99 0 0
81 12 ADVANCE 99 0 0
90 13 RELEASE 99 0 0
91 14 TEST 99 0 0
92 15 TEST 99 0 0
93 16 TEST 74 0 0
94 17 TERMINATE 0 0 0
96 A3 SEIZE 153 0 0
97 19 ADVANCE 153 0 0
98 20 RELEASE 153 0 0
99 21 SEIZE 153 0 0
100 22 ADVANCE 153 1 0
101 23 RELEASE 152 0 0
102 24 ASSIGN 152 0 0
103 25 ASSIGN 152 0 0
103.1 26 SEIZE 152 0 0
103.2 27 ADVANCE 152 0 0
103.3 28 RELEASE 152 0 0
104 29 SEIZE 152 0 0
105 30 ADVANCE 152 0 0
106 31 RELEASE 152 0 0
107 32 TEST 152 1 0
108 33 TEST 114 0 0
109 34 TERMINATE 73 0 0
111 A2 SEIZE 66 0 0
112 36 ADVANCE 66 0 0
113 37 RELEASE 66 0 0
114 38 SEIZE 66 0 0
115 39 ADVANCE 66 1 0
116 40 RELEASE 65 0 0
116.1 41 TEST 65 0 0
117 42 TERMINATE 10 0 0
117.1 D1 ASSIGN 55 0 0
117.2 44 ASSIGN 55 0 0
117.3 45 TRANSFER 55 1 0
118 A1 SEIZE 63 0 0
119 47 ADVANCE 63 1 0
120 48 RELEASE 62 0 0
121 49 SEIZE 62 0 0
122 50 ADVANCE 62 1 0
GPSS/PC Report file REPORT.GPS. (V 2, # 37349) 12-16-2009 09:55:00 page 3
LINE LOC BLOCK_TYPE ENTRY_COUNT CURRENT_COUNT RETRY
123 51 RELEASE 61 0 0
123.1 52 TEST 61 0 0
124 53 TERMINATE 14 0 0
124.1 D2 ASSIGN 47 0 0
124.2 55 ASSIGN 47 0 0
124.3 56 TRANSFER 47 0 0
125 57 GENERATE 54 0 0
126 58 ASSIGN 54 0 0
127 59 ASSIGN 54 0 0
127.1 60 ASSIGN 54 0 0
128 61 SEIZE 54 0 0
130 62 ADVANCE 54 0 0
140 63 RELEASE 54 1 0
150 AA SEIZE 107 0 0
160 65 ADVANCE 107 1 0
170 66 RELEASE 106 0 0
180 67 SEIZE 106 0 0
181 68 ADVANCE 106 1 0
182 69 RELEASE 105 0 0
183 70 TEST 105 0 0
184 71 TEST 79 0 0
185 72 TERMINATE 0 0 0
1010 73 GENERATE 56 0 0
1011 74 ASSIGN 56 0 0
1012 75 ASSIGN 56 0 0
1013 76 ASSIGN 56 1 0
1020 77 SEIZE 55 0 0
1030 78 ADVANCE 55 0 0
1040 79 RELEASE 55 0 0
1050 ZZ SEIZE 100 0 0
1060 81 ADVANCE 100 1 0
1070 82 RELEASE 99 14 0
1080 83 SEIZE 85 0 0
1081 84 ADVANCE 85 0 0
1090 85 RELEASE 85 0 0
1091 86 TEST 85 0 0
1092 87 TEST 85 2 0
1093 88 TEST 66 0 0
1094 89 TEST 39 0 0
1095 90 TERMINATE 0 0 0
1096 B4 SEIZE 105 0 0
1097 92 ADVANCE 105 0 0
1098 93 RELEASE 105 0 0
1099 94 SEIZE 105 0 0
10100 95 ADVANCE 105 0 0
10101 96 RELEASE 105 0 0
10102 97 ASSIGN 105 0 0
10103 98 ASSIGN 105 0 0
10103.1 99 SEIZE 105 0 0
10103.2 100 ADVANCE 105 1 0
GPSS/PC Report file REPORT.GPS. (V 2, # 37349) 12-16-2009 09:55:00 page 4
LINE LOC BLOCK_TYPE ENTRY_COUNT CURRENT_COUNT RETRY
10103.3 101 RELEASE 104 13 0
10104 102 SEIZE 91 0 0
10105 103 ADVANCE 91 1 0
10106 104 RELEASE 90 0 0
10107 105 TEST 90 0 0
10108 106 TEST 70 0 0
10109 107 TEST 51 0 0
10110 108 TERMINATE 36 0 0
10111 B1 SEIZE 63 0 0
10112 110 ADVANCE 63 0 0
10113 111 RELEASE 63 0 0
10114 112 SEIZE 63 0 0
10115 113 ADVANCE 63 1 0
10116 114 RELEASE 62 0 0
10116.1 115 TEST 62 0 0
10117 116 TERMINATE 17 0 0
10117.1 D3 ASSIGN 45 0 0
10117.2 118 ASSIGN 45 0 0
10117.3 119 TRANSFER 45 0 0
10118 B2 SEIZE 36 0 0
10119 121 ADVANCE 36 0 0
10120 122 RELEASE 36 1 0
10121 123 SEIZE 35 0 0
10122 124 ADVANCE 35 1 0
10123 125 RELEASE 34 0 0
10123.1 126 TEST 34 0 0
10124 127 TERMINATE 8 0 0
10125 D4 ASSIGN 26 0 0
10126 129 ASSIGN 26 0 0
10127 130 TRANSFER 26 0 0
10140 B3 SEIZE 53 0 0
10141 132 ADVANCE 53 1 0
10142 133 RELEASE 52 0 0
10143 134 SEIZE 52 0 0
10144 135 ADVANCE 52 0 0
10145 136 RELEASE 52 0 0
10146 137 TEST 52 0 0
10147 138 TERMINATE 13 0 0
10148 D5 ASSIGN 39 0 0
10149 140 ASSIGN 39 0 0
10150 141 TRANSFER 39 0 0
10161 142 GENERATE 54 0 0
10162 143 ASSIGN 54 0 0
10163 144 ASSIGN 54 0 0
10164 145 ASSIGN 54 0 0
10165 146 SEIZE 54 0 0
10166 147 ADVANCE 54 0 0
10167 148 RELEASE 54 3 0
10168 XX SEIZE 77 0 0
10169 150 ADVANCE 77 1 0
GPSS/PC Report file REPORT.GPS. (V 2, # 37349) 12-16-2009 09:55:00 page 5
LINE LOC BLOCK_TYPE ENTRY_COUNT CURRENT_COUNT RETRY
10170 151 RELEASE 76 11 0
10180 152 SEIZE 65 0 0
10181 153 ADVANCE 65 0 0
10182 154 RELEASE 65 0 0
10183 155 TEST 65 0 0
10184 156 TEST 47 0 0
10185 157 TEST 36 0 0
10186 158 TERMINATE 0 0 0
10261 159 GENERATE 55 0 0
10262 160 ASSIGN 55 0 0
10263 161 ASSIGN 55 0 0
10264 162 ASSIGN 55 0 0
10265 163 SEIZE 55 0 0
10266 164 ADVANCE 55 1 0
10267 165 RELEASE 54 0 0
10268 VV SEIZE 93 0 0
10269 167 ADVANCE 93 0 0
10270 168 RELEASE 93 15 0
10280 169 SEIZE 78 0 0
10281 170 ADVANCE 78 0 0
10282 171 RELEASE 78 0 0
10283 172 TEST 78 0 0
10284 173 TEST 53 0 0
10285 174 TEST 53 0 0
10286 175 TERMINATE 23 0 0
102000 176 GENERATE 1 0 0
102010 177 TERMINATE 1 0 0
FACILITY ENTRIES UTIL. AVE._TIME AVAILABLE OWNER PEND INTER RETRY DELAY
PC1 116 0.676 5.83 1 263 0 0 0 0
K1 163 0.620 3.80 1 252 0 0 0 2
SW 357 0.807 2.54 1 249 0 0 0 1
K3 305 0.609 2.00 1 0 0 0 0 0
FS 153 0.756 4.94 1 257 0 0 0 0
K2 173 0.865 5.00 1 268 0 0 0 2
PC2 120 0.664 5.53 1 258 0 0 0 0
PC3 118 0.827 7.86 1 168 0 0 0 1
K4 163 0.819 5.02 1 187 0 0 0 0
SW2 319 0.749 2.97 1 195 0 0 0 53
K7 210 0.629 3.00 1 156 0 0 0 0
FS2 105 0.630 6.00 1 0 0 0 0 0
K5 113 0.746 8.37 1 170 0 0 0 5
PC4 89 0.819 9.20 1 175 0 0 0 1
K6 146 0.714 4.89 1 219 0 0 0 0
PC5 107 0.872 8.15 1 272 0 0 0 0
XACT_GROUP GROUP_SIZE RETRY
POSITION 0 0
Вывод: рассмотрел принцип проверки пакетов на статус запрос-ответ.
Контрольная работа №4

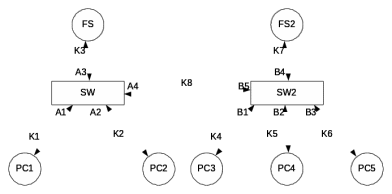

Построить сеть:
Листинг программы:
1 ADR1 FUNCTION RN1,D6
0.15,2/0.3,3/0.45,4/0.6,5/0.85,6/1,7
2 ADR2 FUNCTION RN1,D6
0.15,1/0.3,3/0.45,4/0.6,5/0.85,6/1,7
3 ADR3 FUNCTION RN1,D6
0.15,1/0.3,2/0.45,3/0.6,5/0.85,6/1,7
4 ADR4 FUNCTION RN1,D6
0.15,1/0.3,2/0.45,3/0.6,4/0.85,6/1,7
5 ADR5 FUNCTION RN1,D6
0.15,1/0.3,2/0.45,3/0.6,4/0.85,5/1,7
10 GENERATE 35,5
11 ASSIGN 1,1
