103.1 25 SEIZE 98 0 0
103.2 26 ADVANCE 98 1 0
GPSS/PC Report file REPORT.GPS. (V 2, # 37349) 12-16-2009 09:27:09 page 2
LINE LOC BLOCK_TYPE ENTRY_COUNT CURRENT_COUNT RETRY
103.3 27 RELEASE 97 27 0
104 28 SEIZE 70 0 0
105 29 ADVANCE 70 0 0
106 30 RELEASE 70 0 0
107 31 TEST 70 0 0
108 32 TEST 35 0 0
109 33 TEST 0 0 0
110 34 TERMINATE 0 0 0
111 A2 SEIZE 35 0 0
112 36 ADVANCE 35 0 0
117 37 RELEASE 35 0 0
118 38 SEIZE 35 0 0
119 39 ADVANCE 35 0 0
120 40 RELEASE 35 0 0
121 41 TERMINATE 35 0 0
122 A1 SEIZE 35 0 0
123 43 ADVANCE 35 0 0
124 44 RELEASE 35 0 0
125 45 SEIZE 35 0 0
126 46 ADVANCE 35 0 0
127 47 RELEASE 35 0 0
128 48 TERMINATE 35 0 0
129 49 GENERATE 69 0 0
130 50 ASSIGN 69 0 0
131 51 ASSIGN 69 0 0
132 52 SEIZE 69 0 0
133 53 ADVANCE 69 1 0
140 54 RELEASE 68 0 0
150 55 SEIZE 68 0 0
160 56 ADVANCE 68 0 0
170 57 RELEASE 68 17 0
180 58 SEIZE 51 0 0
181 59 ADVANCE 51 0 0
182 60 RELEASE 51 0 0
183 61 TEST 51 0 0
184 62 TEST 51 0 0
185 63 TERMINATE 0 0 0
2000 64 GENERATE 1 0 0
2010 65 TERMINATE 1 0 0
FACILITY ENTRIES UTIL. AVE._TIME AVAILABLE OWNER PEND INTER RETRY DELAY
PC1 102 0.511 5.01 1 0 0 0 0 0
K1 102 0.517 5.07 1 0 0 0 0 0
SW 170 0.871 5.71 1 100 0 0 0 62
K3 197 0.698 3.54 1 99 0 0 0 0
FS 99 0.576 4.81 1 101 0 0 0 0
K2 103 0.518 5.03 1 0 0 0 0 0
PC2 104 0.515 4.95 1 137 0 0 0 0
GPSS/PC Report file REPORT.GPS. (V 2, # 37349) 12-16-2009 09:27:09 page 3
XACT_GROUP GROUP_SIZE RETRY
POSITION 0 0
2. Построить сеть, состоящую из 2х ПК и файл-сервера, соединенных через SWITCH, добавить функцию генерирования адреса
Листинг программы:
1 ADR1 FUNCTION RN3,D2
0.2,2/1,3
2 ADR2 FUNCTION RN3,D2
0.2,1/1,3
10 GENERATE 15,5
11 ASSIGN 1,1
12 ASSIGN 2,FN$ADR1
20 SEIZE PC1
30 ADVANCE 5,1
40 RELEASE PC1
50 SEIZE K1
60 ADVANCE 5,1
70 RELEASE K1
80 SEIZE SW
81 ADVANCE 2,1
90 RELEASE SW
91 TEST NE P2,1,A1
92 TEST NE P2,2,A2
93 TEST NE P2,3,A3
94 TERMINATE
96 A3 SEIZE K3
97 ADVANCE 2,1
98 RELEASE K3
99 SEIZE FS
100 ADVANCE 5,1
101 RELEASE FS
102 ASSIGN 2,P1
103 ASSIGN 1,3
103.1 SEIZE K3
103.2 ADVANCE 2,1
103.3 RELEASE K3
104 SEIZE SW
105 ADVANCE 3,2
106 RELEASE SW
107 TEST NE P1,1,A1
108 TEST NE P1,2,A2
109 TERMINATE
111 A2 SEIZE K2
112 ADVANCE 5,1
113 RELEASE K2
114 SEIZE PC2
115 ADVANCE 5,1
116 RELEASE PC2
117 TERMINATE
118 A1 SEIZE K1
119 ADVANCE 5,1
120 RELEASE K1
121 SEIZE PC1
122 ADVANCE 5,1
123 RELEASE PC1
124 TERMINATE
125 GENERATE 10,5
126 ASSIGN 1,2
127 ASSIGN 2,FN$ADR2
128 SEIZE PC2
130 ADVANCE 5,1
140 RELEASE PC2
150 SEIZE K2
160 ADVANCE 5,1
170 RELEASE K2
180 SEIZE SW
181 ADVANCE 3,2
182 RELEASE SW
183 TEST NE P2,1,A1
184 TEST NE P2,2,A2
184 TEST NE P2,3,A3
185 TERMINATE
2000 GENERATE 1000
2010 TERMINATE 1
2020 START 1
Отчет GPSSREPT:
START_TIME END_TIME BLOCKS FACILITIES STORAGES FREE_MEMORY
0 1000 63 7 0 349776
NAME VALUE TYPE
COLUMN 10001 2
POSITION 10002 2
SHAPE 10003 2
ROW 10004 2
TO_COLUMN 10005 2
TO_ROW 10006 2
COLOR 10007 2
ADR1 10008 2
ADR2 10009 2
PC1 10010 2
K1 10011 2
SW 10012 2
A1 41 3
A2 34 3
A3 17 3
K3 10016 2
FS 10017 2
K2 10018 2
PC2 10019 2
LINE LOC BLOCK_TYPE ENTRY_COUNT CURRENT_COUNT RETRY
10 1 GENERATE 66 0 0
11 2 ASSIGN 66 0 0
12 3 ASSIGN 66 0 0
20 4 SEIZE 66 0 0
30 5 ADVANCE 66 0 0
40 6 RELEASE 66 0 0
50 7 SEIZE 66 0 0
60 8 ADVANCE 66 1 0
70 9 RELEASE 65 0 0
80 10 SEIZE 65 0 0
81 11 ADVANCE 65 0 0
90 12 RELEASE 65 0 0
91 13 TEST 65 0 0
92 14 TEST 65 0 0
93 15 TEST 44 0 0
94 16 TERMINATE 0 0 0
96 A3 SEIZE 117 0 0
97 18 ADVANCE 117 0 0
98 19 RELEASE 117 0 0
99 20 SEIZE 117 0 0
100 21 ADVANCE 117 0 0
101 22 RELEASE 117 0 0
102 23 ASSIGN 117 0 0
103 24 ASSIGN 117 0 0
GPSS/PC Report file REPORT.GPS. (V 2, # 37349) 12-16-2009 09:35:36 page 2
LINE LOC BLOCK_TYPE ENTRY_COUNT CURRENT_COUNT RETRY
103.1 25 SEIZE 117 0 0
103.2 26 ADVANCE 117 0 0
103.3 27 RELEASE 117 0 0
104 28 SEIZE 117 0 0
105 29 ADVANCE 117 1 0
106 30 RELEASE 116 0 0
107 31 TEST 116 0 0
108 32 TEST 116 0 0
109 33 TERMINATE 116 0 0
111 A2 SEIZE 21 0 0
112 35 ADVANCE 21 0 0
113 36 RELEASE 21 0 0
114 37 SEIZE 21 0 0
115 38 ADVANCE 21 0 0
116 39 RELEASE 21 0 0
117 40 TERMINATE 21 0 0
118 A1 SEIZE 27 0 0
119 42 ADVANCE 27 0 0
120 43 RELEASE 27 0 0
121 44 SEIZE 27 0 0
122 45 ADVANCE 27 1 0
123 46 RELEASE 26 0 0
124 47 TERMINATE 26 0 0
125 48 GENERATE 102 0 0
126 49 ASSIGN 102 0 0
127 50 ASSIGN 102 0 0
128 51 SEIZE 102 0 0
130 52 ADVANCE 102 1 0
140 53 RELEASE 101 0 0
150 54 SEIZE 101 0 0
160 55 ADVANCE 101 0 0
170 56 RELEASE 101 0 0
180 57 SEIZE 101 0 0
181 58 ADVANCE 101 0 0
182 59 RELEASE 101 0 0
183 60 TEST 101 1 0
184 61 TEST 73 0 0
185 62 TERMINATE 0 0 0
2000 63 GENERATE 1 0 0
2010 64 TERMINATE 1 0 0
FACILITY ENTRIES UTIL. AVE._TIME AVAILABLE OWNER PEND INTER RETRY DELAY
PC1 93 0.661 4.96 1 167 0 0 0 0
K1 93 0.672 5.08 1 166 0 0 0 1
SW 283 0.766 2.71 1 165 0 0 0 0
K3 234 0.672 2.02 1 0 0 0 0 0
FS 117 0.570 4.87 1 0 0 0 0 0
K2 122 0.614 5.03 1 0 0 0 0 0
PC2 123 0.618 5.02 1 169 0 0 0 0
GPSS/PC Report file REPORT.GPS. (V 2, # 37349) 12-16-2009 09:35:36 page 3
XACT_GROUP GROUP_SIZE RETRY
POSITION 0 0
Вывод: в работе смоделировали сеть, состоящую из 2 компьютеров и файл-сервера, соединённых через свитч.
-
Контрольная работа №3
-
Построить сеть, аналогичную сети в л.р.2, добавить переменную запрос/ответ.
Листинг программы:
1 ADR1 FUNCTION RN3,D2
0.5,2/1,3
2 ADR2 FUNCTION RN3,D2
0.5,1/1,3
10 GENERATE 15,5
11 ASSIGN 1,1
12 ASSIGN 2,FN$ADR1
13 ASSIGN 3,0
20 SEIZE PC1
30 ADVANCE 5,1
40 RELEASE PC1
50 BB SEIZE K1
60 ADVANCE 2,1
70 RELEASE K1
80 SEIZE SW
81 ADVANCE 3,1
90 RELEASE SW
91 TEST NE P2,1,A1
92 TEST NE P2,2,A2
93 TEST NE P2,3,A3
94 TERMINATE
96 A3 SEIZE K3
97 ADVANCE 4,1
98 RELEASE K3
99 SEIZE FS
100 ADVANCE 6,1
101 RELEASE FS
102 ASSIGN 2,P1
103 ASSIGN 1,3
103.1 SEIZE K3
103.2 ADVANCE 2,1
103.3 RELEASE K3
104 SEIZE SW
105 ADVANCE 2,1
106 RELEASE SW
107 TEST NE P2,1,A1
108 TEST NE P2,2,A2
109 TERMINATE
111 A2 SEIZE K2
112 ADVANCE 5,1
113 RELEASE K2
114 SEIZE PC2
115 ADVANCE 3,1
116 RELEASE PC2
116.1 TEST NE P3,0,B1
117 TERMINATE
117.1 B1 ASSIGN 2,P1
117.2 ASSIGN 3,1
117.3 TRANSFER ,AA
118 A1 SEIZE K1
119 ADVANCE 5,1
120 RELEASE K1
121 SEIZE PC1
122 ADVANCE 2,1
123 RELEASE PC1
124 TEST NE P3,0,B2
125 TERMINATE
126 B2 ASSIGN 2,P1
127 ASSIGN 3,1
128 TRANSFER ,BB
130 GENERATE 15,5
131 ASSIGN 1,2
132 ASSIGN 2,FN$ADR2
133 ASSIGN 3,0
134 SEIZE PC2
135 ADVANCE 5,1
140 RELEASE PC2
150 AA SEIZE K2
160 ADVANCE 2,1
170 RELEASE K2
180 SEIZE SW
181 ADVANCE 3,1
182 RELEASE SW
183 TEST NE P2,1,A1
184 TEST NE P2,2,A2
184 TEST NE P2,3,A3
185 TERMINATE
2000 GENERATE 1000
2010 TERMINATE 1
2020 START 1
Отчет GPSSREPT:
GPSS/PC Report file REPORT.GPS. (V 2, # 37349) 12-16-2009 09:45:42 page 1
START_TIME END_TIME BLOCKS FACILITIES STORAGES FREE_MEMORY
0 1000 73 7 0 347424
NAME VALUE TYPE
COLUMN 10001 2
POSITION 10002 2
SHAPE 10003 2
ROW 10004 2
TO_COLUMN 10005 2
TO_ROW 10006 2
COLOR 10007 2
ADR1 10008 2
ADR2 10009 2
PC1 10010 2
K1 10011 2
BB 8 3
SW 10013 2
A1 46 3
A2 35 3
A3 18 3
K3 10017 2
FS 10018 2
K2 10019 2
PC2 10020 2
B1 43 3
AA 64 3
B2 54 3
LINE LOC BLOCK_TYPE ENTRY_COUNT CURRENT_COUNT RETRY
10 1 GENERATE 64 0 0
11 2 ASSIGN 64 0 0
12 3 ASSIGN 64 0 0
13 4 ASSIGN 64 0 0
20 5 SEIZE 64 0 0
30 6 ADVANCE 64 0 0
40 7 RELEASE 64 0 0
50 BB SEIZE 128 1 0
60 9 ADVANCE 127 0 0
70 10 RELEASE 127 1 0
80 11 SEIZE 126 0 0
81 12 ADVANCE 126 0 0
90 13 RELEASE 126 0 0
91 14 TEST 126 0 0
92 15 TEST 126 0 0
93 16 TEST 54 0 0
94 17 TERMINATE 0 0 0
96 A3 SEIZE 106 0 0
97 19 ADVANCE 106 0 0
98 20 RELEASE 106 1 0
GPSS/PC Report file REPORT.GPS. (V 2, # 37349) 12-16-2009 09:45:42 page 2
LINE LOC BLOCK_TYPE ENTRY_COUNT CURRENT_COUNT RETRY
99 21 SEIZE 105 0 0
100 22 ADVANCE 105 1 0
101 23 RELEASE 104 0 0
102 24 ASSIGN 104 0 0
103 25 ASSIGN 104 0 0
103.1 26 SEIZE 104 0 0
103.2 27 ADVANCE 104 1 0
103.3 28 RELEASE 103 2 0
104 29 SEIZE 101 1 0
105 30 ADVANCE 100 0 0
106 31 RELEASE 100 0 0
107 32 TEST 100 0 0
108 33 TEST 74 0 0
109 34 TERMINATE 48 0 0
111 A2 SEIZE 98 0 0
112 36 ADVANCE 98 1 0
113 37 RELEASE 97 1 0
114 38 SEIZE 96 0 0
115 39 ADVANCE 96 0 0
116 40 RELEASE 96 0 0
116.1 41 TEST 96 0 0
117 42 TERMINATE 36 0 0
117.1 B1 ASSIGN 60 0 0
117.2 44 ASSIGN 60 0 0
117.3 45 TRANSFER 60 0 0
118 A1 SEIZE 99 0 0
119 47 ADVANCE 99 0 0
120 48 RELEASE 99 0 0
121 49 SEIZE 99 0 0
122 50 ADVANCE 99 1 0
123 51 RELEASE 98 0 0
124 52 TEST 98 0 0
125 53 TERMINATE 34 0 0
126 B2 ASSIGN 64 0 0
127 55 ASSIGN 64 0 0
128 56 TRANSFER 64 0 0
130 57 GENERATE 68 0 0
131 58 ASSIGN 68 0 0
132 59 ASSIGN 68 0 0
133 60 ASSIGN 68 0 0
134 61 SEIZE 68 0 0
135 62 ADVANCE 68 1 0
140 63 RELEASE 67 0 0
150 AA SEIZE 127 0 0
160 65 ADVANCE 127 0 0
170 66 RELEASE 127 1 0
180 67 SEIZE 126 0 0
181 68 ADVANCE 126 0 0
182 69 RELEASE 126 0 0
183 70 TEST 126 0 0
GPSS/PC Report file REPORT.GPS. (V 2, # 37349) 12-16-2009 09:45:42 page 3
LINE LOC BLOCK_TYPE ENTRY_COUNT CURRENT_COUNT RETRY
184 71 TEST 53 1 0
185 72 TERMINATE 0 0 0
2000 73 GENERATE 1 0 0
2010 74 TERMINATE 1 0 0
FACILITY ENTRIES UTIL. AVE._TIME AVAILABLE OWNER PEND INTER RETRY DELAY
PC1 163 0.528 3.24 1 129 0 0 0 0
K1 227 0.753 3.32 1 132 0 0 0 0
SW 353 0.848 2.69 1 125 0 0 0 4
K3 210 0.624 2.97 1 118 0 0 0 1
FS 105 0.620 5.90 1 120 0 0 0 1
K2 225 0.753 3.35 1 126 0 0 0 0
PC2 164 0.625 3.81 1 133 0 0 0 1
XACT_GROUP GROUP_SIZE RETRY

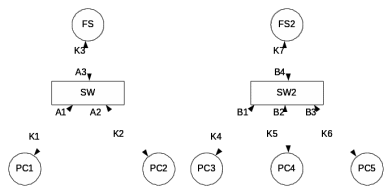

POSITION 0 0 Построить сеть:
Листинг программы:
1 ADR1 FUNCTION RN3,D2
0.2,2/1,3
2 ADR2 FUNCTION RN3,D2
0.2,1/1,3
3 ADR3 FUNCTION RN1,D3
0.2,5/0.5,6/1,7
4 ADR4 FUNCTION RN1,D3
0.2,4/0.5,6/1,7
5 ADR5 FUNCTION RN1,D3
0.2,4/0.5,5/1,7
10 GENERATE 18,3
11 ASSIGN 1,1
12 ASSIGN 2,FN$ADR1
13 ASSIGN 3,0
