Fig.4 - Capital Decumulation and Gravitation

Thus, we can begin to see some cyclical phenomenon in action. Y_A and Y_C are both short-term equilibrium levels of output. However, neither of them, in the long-term, is stable. Consequently, as time progresses, we will be alternating between output levels near the lower end (around Y_A) and output levels near the higher end (around Y_C). Moving from Y_A to Y_C and back to Y_A and so on is an inexorable phenomenon. In simplest terms, it is Kaldor's trade cycle.

W. W. Chang and D. J. Smyth (1971) and Hal Varian (1979) translated Kaldor's trade cycle model into more rigorous context: the former into a limit cycle and the latter into catastrophe theory. Output, as we saw via the theory of the multiplier, responds to the difference between savings and investment. Thus:

dY/dt = a (I - S)

where a is the "speed" by which output responds to excess investment. If I > S, dY/dt > 0. If I < S, dY/dt < 0. Now both savings and investment are positive (non-linear) functions of income and capital, hence I = I (K, Y) and S = S (K, Y) where dI/dY= I_Y > 0 and dS/dY = S_Y > 0 while dI/dK = I_K < 0 and dS/dK = S_K > 0, for the reasons explained before. At any of the three intersection points, Y_A, Y_B and Y_C, savings are equal to investment (I - S = 0).

We are faced basically with two differential equations:

dY/dt = a [I (K,Y) - S (K,Y)], dK/dt = I (K, Y)

To examine the local dynamics, let us linearize these equations around an equilibrium (Y*, K*) and restate them in a matrix system:

dY/dt	=	a (IY - SY)	a (IK - SK)		Y
dK/dt		IY	IK	[Y*, K*]	K

the Jacobian matrix of first derivatives evaluated locally at equilibrium (Y*, K*), call it A, has determinant:

|A| = a (I_Y - S_Y) I_K - a (I_K - S_K) I_Y, = a (S_KI_Y - I_KS_Y)

where, since I_K < 0 and S_K, S_Y, I_Y > 0 then |A| > 0, thus we have regular (non-saddlepoint) dynamics. To examine local stability, the trace is simply:

tr A = a (I_Y - S_Y) + I_K

whose sign, obviously, will depend upon the sign of (I_Y - S_Y). Now, examine the earlier Figures 3 and 4 again. Notice around the extreme areas, i. e. around Y_A and Y_C, the slope of the savings function is greater than the slope of the investment function, i. e. dS/dY > dI/dY or, in other words, I_Y - S_Y < 0. In contrast, around the middle areas (around Y_B) the slope of the savings function is less than the slope of the investment function, thus I_Y - S_Y > 0. Thus, assuming I_k is sufficiently small, the trace of the matrix will be positive around the middle area (around Y_B), thus equilibrium B is locally unstable, whereas around the extremes (Y_A and Y_C), the trace will be negative, thus equilibrium A and C are locally stable. This is as we expected from the earlier diagrams.

To obtain the phase diagram in Figure 5, we must obtain the isoclines dY/dt = 0 and dK/dt = 0 by evaluating each differential equation at steady state. When dY/dt = 0, note that a [I (Y, K) - S (Y, K)] = 0, then using the implicit function theorem:

dK/dY|_{dY/dt = 0} = - (I_Y - S_Y) / (I_K - S_K)

Now, we know from before that I_k < 0 and S_k > 0, thus the denominator (I_k - S_k) < 0 for certain. The shape of the isocline for dY/dt = 0, thus, depends upon the value of (I_y - S_y). As we claimed earlier, for extreme values of Y (around Y_A and Y_C), we had (I_Y - S_y) < 0, thus dK/dY|_Y < 0, i. e. the isocline is negatively shaped. However, around middle values of Y (around Y_B), we had (I_Y - S_Y) > 0, thus dK/dY|_Y > 0, i. e. the isocline is positively shaped. This is shown in Figure 5.

Fig.5 - Isokine for dY/dt = 0

From Figure 5, we see that at low values of Y (below Y₁) and high values of Y (above Y₂), the isokine is negatively-sloped - this corresponds to the areas in our earlier diagrams where the savings function was steeper than the investment function (e. g. around Y_A and Y_C). However, between Y₁ and Y₂, the isokine is positively-sloped - which corresponds to the areas where investment is steeper than savings (around Y_B in our earlier diagrams).

The off-isokine dynamics are easy, namely differentiating the differential equation dY/dt for K:

d (dY/dt) /dK = a [I_K - S_K] < 0

as I_K < 0 and S_K > 0. Thus, above the isokine, dY/dt 0, so output rises. The directional arrows indicate these tendencies. We can already get a flavor of Kaldor's trade cycle from Figure 6. Remember that our earlier Kaldorian diagrams were drawn for a particular level of capital, K. Thus, as we see in Figure 6, for a given level of K₀, we can find the corresponding equilibria (Y_A, Y_B, Y_C) at the intersection between the isokine and the level line K₀. However, suppose we start at point C so that K begins to rise: notice that when K₀ rises to K₂, the points Y_C and Y_B begin to move together and finally "merge" at the critical point D (which corresponds to our old B=C) at point Y₂. The underlying dynamic (represented by the phase arrows) implies that point D is completely unstable so there will be a catastrophic jump from D to the lower equilibrium E (which is where A moved to as K rose from K₀ to K₂). Notice that during this catastrophic fall in output is driven solely by the fast multiplier dynamic - the slower-moving capital dynamic is inoperative as, in moving from D to E, capital is constant at K₂.

Figure 6 - Dynamics of the Kaldor Cycle

The rest of the story then follows in reverse. At E in Figure 6, we are at a pretty low output level and thus capital decumulates and so K declines from K₂ past K₀ and then on towards K₁. In the meantime, our lower two equilibrium begin to move towards each other and A and B meet and merge at point F at Y₁ (equivalent to our old A=B). Note that the stability arrows in Figure 6 are such that now we must have a catastrophic jump in output from F to point G (the high equilibrium to which point C moved to as capital fell from K₂ to K₁). From G, the process then begins again as capital rises at high output levels from K₁ to K₀ and onto K₂.

The output cycle that can be traced out from the arrows drawn in Figure 6 (from slow movement from G to C to D then catastrophic jump to E then slow movement from E to A to F then catastrophic jump to G, etc) is Kaldor's trade cycle: output thus fluctuates over time between the boundaries imposed by the extreme points E (lower bound) and G (upper bound). Notice that the cycle is completely endogenous: no exogenous shocks, ceilings, floors, structurally unstable parameter values or ratchets are necessary to obtain constant cycles. The non-linearity of the curves, which are economically-justified and not exceptional, is more than sufficient to generate endogenous cycles.

This version of Kaldor's model is derived a bit more formally in Varian (1979) using catastrophe theory. However, we can also use regular non-linear dynamical theory, which makes no assumptions about the relative speeds of the dynamics, to obtain a cycle from the Kaldor model - and this is what Chang and Smyth (1971) do. We have already derived the isokine dY/dt = 0, so to get the full story, we need the dK/dt = 0 isokine. This is simple. dK/dt = I (Y, K), thus at steady-state, dK/dt = 0 = I (Y, K) so the isokine has slope:

dK/dY|_K = - I_Y/I_K > 0

as I_Y < 0 and I_K > 0. Thus, the dK/dt = 0 isokine is positive sloped. We have superimposed it on the other isokine in Figure 7. For the off-isokine dynamics, note that:

d (dK/dt) /dY = I_Y > 0

so that the directional arrows drawn in for the dK/dt = 0 isokine imply that to the left of it, dK/dt 0 (capital rises). In the figure below, we have superimposed the isokines for the whole system. As is obvious, the global equilibrium, where dK/dt = dY/dt = 0, is at K^* and Y^* (point E). Now, as we showed earlier, the trace of the system, tr A, is positive around point E, thus we know that the global equilibrium is locally unstable - as is shown in Figure 7 by the unstable trajectory that emerges when we move slightly off the equilibrium point E. .

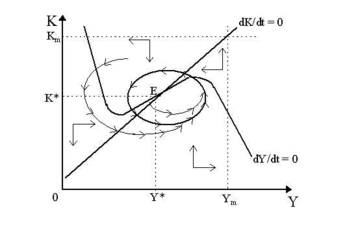

Fig.7 - Kaldor's Trade Cycle

However, notice that the system as a whole is "stable": when we draw a "box" around the diagram by imposing upper boundaries K_m and Y_m in Figure 7 and letting the axis act as lower boundaries, then the directional phase arrows around the boundaries of the box indicate that we do not get out of the confines of this box - any trajectory which enters the "box" will not leave it. Indeed, from the distant boundaries, it almost seems as if we are moving towards the global equilibrium (K*, Y*). Thus, while the equilibrium (K*, Y*) is locally unstable, we are still confined within this "box". Note that we are assuming complex roots to obtain stable and unstable focal dynamics as opposed to simply monotonic ones.

In fact, these three conditions - complex roots, locally unstable equilibrium and a "confining box" - are all that is necessary to fulfill the Poincarй-Bendixson Theorem on the existence of a dynamic "limit cycle". This limit cycle is shown by the thick black circle in Figure 7 (not perfectly drawn) orbiting around the equilibrium. Any trajectory that begins within the circle created by the limit cycle will be explosive and move out towards the cycle. In contrast, any trajectory that begins outside the circle will be dampened and move in towards it. Two such trajectories are shown in Figure 7. Thus, the limit cycle "attracts" all dynamic trajectories to itself and once a trajectory confluences with the limit cycle, it proceeds to follow the orbit of the limit cycle forever (as shown by the directional arrows on the cycle).

In essence, then, all trajectories are "stable", but we are not speaking of a stable path towards a point (such as an equilibrium) but rather of a stable path towards another path, i. e. the limit cycle. This is the limit cycle version of the Kaldor trade cycle. For details on this version of the Kaldor model and more general non-linear dynamics, particularly on Poincarй-Bendixson and, more generally, the Hopf-Bifurcation necessary to yield dynamic limit cycles, consult Chang and Smith (1971), Gabisch and Lorenz (1987), Lorenz (1989) and Rosser (1991).

Conclusion

Beyond the fact that these pioneers of non-linear dynamic systems in economics were all Keynesians, there is a natural fellowship between non-linear dynamics and Keynesian cycle theory: namely, that non-linear systems, in contrast to linear systems, are far more capable of yielding regular endogenous macrofluctuations. This implies that fluctuations are the outcome and indeed an integral part of a working economy. As this concept was central to Keynes's (1936) static theory, it is no surprise that Oxbridge researchers insist on endogenous cycles as a way of extending it into a dynamic context. In contrast, Neoclassical theory seems to be more apt to consider equilibrium as opposed to fluctuations as the central feature of a working economy - and thus prefer to conceive of "fluctuations" as the results of erratic displacements or aberrations from a working economy. The Neoclassical concept of the economy, thus, is perfectly compatible with linear systems; the Keynesian concept of endogenous cycles, however, seems to require non-linear structures.

Literature

1. Dornbusch R. и др. Macroeconomics/ R. Dornbusch, S. Fischer, R. Startz. - 8th ed. - Boston etc.: Irwin: McGraw-Hill, 2007.

2. McConnel C. R., Brue S. L. Economics: Principles, Problems and Policies. - 14 th ed. - Boston etc.: Irwin: McGraw-Hill, 2001.

3. Speegle R., Giesecke W. Business World: A Collection of Readings on Contemporary Issues. - Oxford etc.: Oxford Univ. Press, 2003.

4. Jobs and Economic Development: Strategies and Practice/Ed.: R. P. Giloth. - Thousand Oaks (Ca) etc.: SAGE, 1998.

5. Walstad W. B., Bingham R. C. Study Guide to accompany McConnell and Brue Economics. - 14 th ed. - Boston etc.: McGraw-Hill, 1999.

6. Макроэкономика: Учеб. для вузов по направлению "Экономика"/ Л.С. Тарасевич, В.П. Гальперин, П.И. Гребников, А.И. Леусский; Под ред.Л.С. Тарасевича. - 3-е изд., перераб. - СПб.: Изд-во С. - Петерб. гос. ун-та экономики и финансов, 2004.
