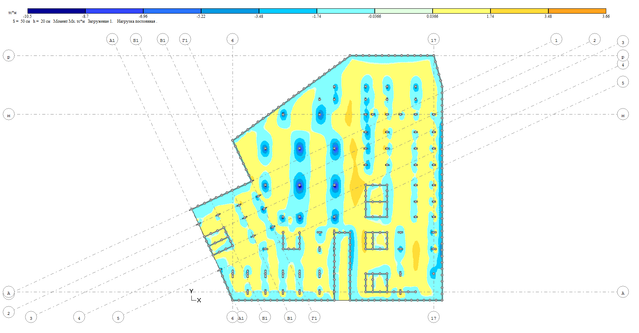

| N | Загружение | Форма/ комбинация | N(тс) | Mx(тс*м) | My(тс*м) | Px(тс) | Py(тс) |
| Этаж N1 Фундаментная плита N1 b=0.6м, S=1416.01м2, 1. Железобетон, C1Min=200тс/м3, C1Max=200тс/м3, C1Ave=200тс/м3, C2Min=2000тс/м2, C2Max=2000тс/м2, C2Ave=2000.004тс/м2 | |||||||
| 1_1 | Постоянная | 27677.465 | -25234.24 | 53757.637 | -0 | 0 | |
| Длительная | 3174.725 | -830.037 | 2868.364 | -0 | -0 | ||
| Кр. времен. | 266.258 | -1503.693 | 2907.418 | 0 | 0 | ||
| Ветер 1 | -0 | 6268.73 | -0.312 | -0.012 | -227.559 | ||
| Ветер 2 | -0 | 4275.967 | 4275.848 | 160.174 | -160.178 | ||
| Сочетание 1 | 34574.395 | -21781.918 | 66063.898 | -0.017 | -318.583 | ||
| Сочетание 2 | 34574.395 | -39334.363 | 66064.773 | 0.017 | 318.583 | ||
| Сочетание 3 | 34574.395 | -24571.787 | 72050.523 | 224.244 | -224.249 | ||
| Сочетание 4 | 34574.395 | -36544.492 | 60078.148 | -224.244 | 224.249 | ||
| Контур Плиты ( Толщина плиты 120.00 см ) | ||||||||
| Точка | X(см) | Y(см) | Точка | X(см) | Y(см) | Точка | X(см) | Y(см) |
| 1 | -1038.41 | 1985.21 | 2 | 475.12 | 2690.99 | 3 | 1049.14 | 1460.00 |
| 4 | 3110.00 | 1460.00 | 5 | 3110.00 | 4260.00 | 6 | 4823.71 | 4260.00 |
| 7 | 4830.03 | 409.32 | 8 | 4370.71 | -50.00 | 9 | 342.67 | -50.00 |
| 10 | -340.29 | 488.09 | ||||||
| ТРИАНГУЛЯЦИЯ. Шаг триангуляции 50.00 см | ||||||||||||
| №тр. | Hпл. (см) | Hпл.O (см) | Xc (см) | Yc (см) | X1 (см) | Y1 (см) | X2 (см) | Y2 (см) | X3 (см) | Y3 (см) | X4 (см) | Y4 (см) |
| 1 | 120.0 | 24.0 | -1009.1 | 1967 | -988.3 | 1955 | -992.5 | 2007 | -1017.3 | 1940 | -1038.4 | 1985 |
| 2 | 120.0 | 24.0 | -966.4 | 1996 | -992.5 | 2007 | -988.3 | 1955 | -946.7 | 2028 | -938.1 | 1955 |
| 3 | 120.0 | 24.0 | -965.1 | 1935 | -988.3 | 1955 | -996.1 | 1894 | -938.1 | 1955 | -938.1 | 1905 |
| 4 | 120.0 | 24.0 | -1000.5 | 1930 | -988.3 | 1955 | -1017.3 | 1940 | -996.1 | 1894 | ||
| 5 | 120.0 | 24.0 | -913.0 | 1921 | -938.1 | 1905 | -887.9 | 1905 | -938.1 | 1955 | -887.9 | 1955 |
| 6 | 120.0 | 24.0 | -915.2 | 1979 | -938.1 | 1955 | -887.9 | 1955 | -946.7 | 2028 | -887.9 | 2005 |
| 7 | 120.0 | 24.0 | -913.0 | 1871 | -938.1 | 1854 | -887.9 | 1854 | -938.1 | 1905 | -887.9 | 1905 |
| 8 | 120.0 | 24.0 | -961.8 | 1884 | -938.1 | 1905 | -996.1 | 1894 | -938.1 | 1854 | -974.9 | 1849 |
| 9 | 120.0 | 24.0 | -911.8 | 2027 | -946.7 | 2028 | -887.9 | 2005 | -900.8 | 2049 | ||
| 10 | 120.0 | 24.0 | -862.9 | 1921 | -887.9 | 1905 | -837.8 | 1905 | -887.9 | 1955 | -837.8 | 1955 |
| 11 | 120.0 | 24.0 | -870.4 | 2020 | -887.9 | 2005 | -837.8 | 2005 | -900.8 | 2049 | -855.0 | 2071 |
| 12 | 120.0 | 24.0 | -862.9 | 1971 | -887.9 | 1955 | -837.8 | 1955 | -887.9 | 2005 | -837.8 | 2005 |
| 13 | 120.0 | 24.0 | -916.9 | 1838 | -938.1 | 1854 | -953.8 | 1804 | -887.9 | 1854 | -887.9 | 1804 |
| 14 | 120.0 | 24.0 | -862.9 | 1871 | -887.9 | 1854 | -837.8 | 1854 | -887.9 | 1905 | -837.8 | 1905 |
| 15 | 120.0 | 24.0 | -955.6 | 1836 | -938.1 | 1854 | -974.9 | 1849 | -953.8 | 1804 | ||
| 16 | 120.0 | 24.0 | -862.9 | 1821 | -887.9 | 1804 | -837.8 | 1804 | -887.9 | 1854 | -837.8 | 1854 |
| 17 | 120.0 | 24.0 | -812.7 | 1921 | -837.8 | 1905 | -787.6 | 1905 | -837.8 | 1955 | -787.6 | 1955 |
| 18 | 120.0 | 24.0 | -812.7 | 1871 | -837.8 | 1854 | -787.6 | 1854 | -837.8 | 1905 | -787.6 | 1905 |
| 19 | 120.0 | 24.0 | -822.4 | 2056 | -855.0 | 2071 | -837.8 | 2005 | -809.1 | 2092 | -787.6 | 2055 |
| 20 | 120.0 | 24.0 | -812.7 | 1971 | -837.8 | 1955 | -787.6 | 1955 | -837.8 | 2005 | -787.6 | 2005 |
| 21 | 120.0 | 24.0 | -862.9 | 1771 | -887.9 | 1754 | -837.8 | 1754 | -887.9 | 1804 | -837.8 | 1804 |
| 22 | 120.0 | 24.0 | -915.6 | 1787 | -887.9 | 1804 | -953.8 | 1804 | -887.9 | 1754 | -932.6 | 1758 |
| 23 | 120.0 | 24.0 | -812.7 | 1821 | -837.8 | 1804 | -787.6 | 1804 | -837.8 | 1854 | -787.6 | 1854 |
| 24 | 120.0 | 24.0 | -804.3 | 2021 | -837.8 | 2005 | -787.6 | 2005 | -787.6 | 2055 | ||
| 25 | 120.0 | 24.0 | -812.7 | 1771 | -837.8 | 1754 | -787.6 | 1754 | -837.8 | 1804 | -787.6 | 1804 |
| 26 | 120.0 | 24.0 | -762.5 | 1921 | -787.6 | 1905 | -737.5 | 1905 | -787.6 | 1955 | -737.5 | 1955 |
| 27 | 120.0 | 24.0 | -762.5 | 1871 | -787.6 | 1854 | -737.5 | 1854 | -787.6 | 1905 | -737.5 | 1905 |
| 28 | 120.0 | 24.0 | -762.5 | 1821 | -787.6 | 1804 | -737.5 | 1804 | -787.6 | 1854 | -737.5 | 1854 |
| 29 | 120.0 | 24.0 | -762.5 | 2021 | -787.6 | 2005 | -737.5 | 2005 | -787.6 | 2055 | -737.5 | 2055 |
| 30 | 120.0 | 24.0 | -786.6 | 2087 | -787.6 | 2055 | -763.2 | 2114 | -809.1 | 2092 | ||
