'fill in the drawing points tmp. x as the value going in the x dir etc

For i = 0 To shape. NumPoints

tmp (i). X = shape. Points (i). X + 75

tmp (i). Y = shape. Points (i). Y + 75

Next i

'Draw solid polygons

'calculate light value (ambient + Max * (normal of plane * light position)

Colr = 100 + 200 * (shape. Normal. Z)

'Fill object as solid

PicBox. FillStyle = 0

'Choose the color (this way makes a shade of yellow)

PicBox. FillColor = RGB (Colr, Colr, Colr / 2)

'draw the polygon

Polygon PicBox. hdc, tmp (0), shape. NumPoints + 1

'draw rest of objects transparently

PicBox. FillStyle = 1

ElseIf View = "TOP" Then

'creat lppoints for the win func call

ReDim tmp (shape. NumPoints) As POINTAPI

'fill in the drawing points tmp. x as the value going in the x dir etc

For i = 0 To shape. NumPoints

tmp (i). X = shape. Points (i). X + 75

tmp (i). Y = shape. Points (i). Z + 75

Next i

'Draw solid polygons

'calculate light value (ambient + Max * (normal of plane * light position)

Colr = 100 + 200 * (shape. Normal. Y)

'Fill object as solid

PicBox. FillStyle = 0

'Choose the color (this way makes a shade of yellow)

PicBox. FillColor = RGB (Colr, Colr, Colr / 2)

'draw the polygon

Polygon PicBox. hdc, tmp (0), shape. NumPoints + 1

'draw rest of objects transparently

PicBox. FillStyle = 1

ElseIf View = "SIDE" Then

'creat lppoints for the win func call

ReDim tmp (shape. NumPoints) As POINTAPI

'fill in the drawing points tmp. x as the value going in the x dir etc

For i = 0 To shape. NumPoints

tmp (i). X = shape. Points (i). Z + 75

tmp (i). Y = shape. Points (i). Y + 75

Next i

'Draw solid polygons

'calculate color value (ambient + Max * (normal of plane * light position)

Colr = 100 + 200 * (shape. Normal. X)

'Fill object as solid

PicBox. FillStyle = 0

'Choose the color (this way makes a shade of yellow)

PicBox. FillColor = RGB (Colr, Colr, Colr / 2)

'draw the polygon

Polygon PicBox. hdc, tmp (0), shape. NumPoints + 1

'draw rest of objects transparently

PicBox. FillStyle = 1

End If

End Function

Private Function VisiblePlane (shape As Verticies, CameraX As Integer, CameraY As Integer, CameraZ As Integer)

'this function takes the normal of the plane and returns True if visible FALSE if

'not visible

'Camera is the spot the object is being viewed from

'Find the dot product

D = (shape. Normal. X * CameraX) + (shape. Normal. Y * CameraY) + (shape. Normal. Z * CameraZ)

'return true if object is visible

VisiblePlane = D >= 0

End Function

Private Function FindNormals ()

'This function finds the normal of each plane

For i = 0 To NumObjectSides

'Find the normal vector

With Sides (i)

' * * * * * * * *

Nx = (. Points (1). Y - Points (0). Y) * (. Points (. NumPoints). Z - Points (0). Z) - (. Points (1). Z - Points (0). Z) * (. Points (. NumPoints). Y - Points (0). Y)

Ny = (. Points (1). Z - Points (0). Z) * (. Points (. NumPoints). X - Points (0). X) - (. Points (1). X - Points (0). X) * (. Points (. NumPoints). Z - Points (0). Z)

Nz = (. Points (1). X - Points (0). X) * (. Points (. NumPoints). Y - Points (0). Y) - (. Points (1). Y - Points (0). Y) * (. Points (. NumPoints). X - Points (0). X)

'Normalize the normal vector (make length of 1)

Length = Sqr (Nx ^ 2 + Ny ^ 2 + Nz ^ 2)

. Normal. X = Nx / Length

. Normal. Y = Ny / Length

. Normal. Z = Nz / Length

End With

Next i

End Function

Private Function CreateTables ()

'Create cosine and sine lookup table

For i = 0 To 359

CosAng (i) = Cos (i * (3.14159265358979/180)) 'convert degrees to radians

SinAng (i) = Sin (i * (3.14159265358979/180)) 'convert degrees to radians

Next i

End Function

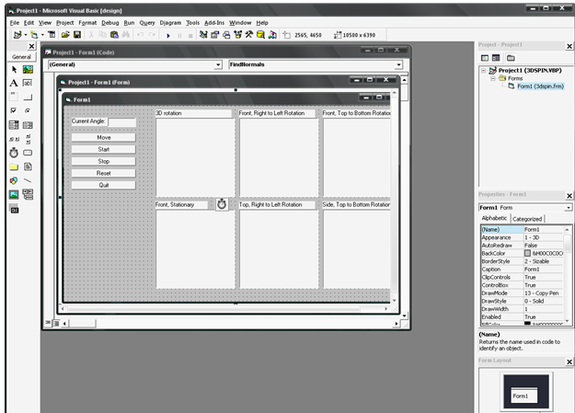

Main Interface
